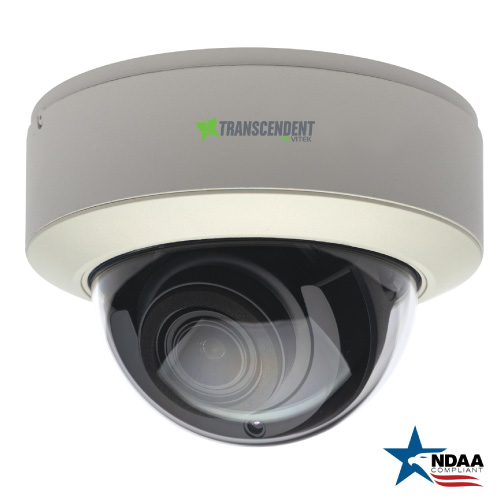

8.MP 2.8-12mm TVI/AHD Dome MZ  Vitek

8.MP 2.8-12mm TVI/AHD Dome MZ Vitek

Item #
ADA8VVM
Brand
Vitek
Model
VTD-THD8RM

Color
White
Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

Item Available in 5-7 Days - Overstock from Manufacturer

Transcendent 8MP Indoor/Outdoor 4-IN-1 HDA Motorized Varifocal Vandal Dome Camera with Matrix IR

1/2.5” 8 MegaPixel [4K] Progressive Scan CMOS image sensor
High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI / CVBS
8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color
Supports OSD Menu
2.8~12mm Motorized Lens, Horizontal FoV: 105.4°~ 36.9° Vertical FoV: 72.9°~21.2° Diagonal FoV: 112.8°~41.9°
30 SMD Type IR LEDs with up to 100’ IR Range
True Mechanical Day/Night function by ICR
XD-DNR (2D & 3D) Noise Reduction
IP67 Weather Resistance + IK10 Impact Rating
Supports Control over COAX (CoC)
Over 1500’ HD Video Transmission (Depending on Cable Characteristics and Integrity)
Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2
[reqs. VT-TJB010]), Pendant Mount (VT-TPDMT-A2 [reqs. VT-TJB010]), and In-Ceiling Semi Flush Mount (VT-TFMT-L2) Available [See Additional Mounting Options Below]
12VDC Operation
3-Year Warranty5.05 x 0.3"


NDAA Compliant
YES

Image Sensor
1/2.5” 8.0 MP Progressive Scan CMOS Sensor NTSC/PAL

Effective Pixels
3840 x 2160

Resolution
HD-TVI & AHD: 8.0 MegaPixel /

Video Output CVI: 4.0 MegaPixel / CVBS: 960H

Video Output
HD-TVI / AHD / CVI / CVBS (Selectable)

Frame Rate 8MP@15fps / 5MP@20fps / 4MP@30fps

Lens 2.8mm~12mm Motorized Varifocal

FoV
Horizontal FoV: 105.4°~ 36.9° Vertical FoV: 72.9°~21.2° Diagonal FoV: 112.8°~41.9°

Day/Night True Day/Night by ICR

Min. IIIumination Color: 0.01 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)

IR LEDs 3 Matrix Style IRs

IR Distance Up to 100’

Dynamic (Smart) IR
YES

S/N Ratio =52 dB (AGC Off)

Digital Noise Reduction 3D-DNR

Auto White Balance  YES (AWB)

Back Light Compensation YES (BLC)

Control over COAX
 (CoC) YES

Other Features Saturation, Sharpness, Contrast, Smart IR, Image Setting, Auto Defect Correction

Transmission Distance Up to 1500’ (Depending on Cable Characteristics and Integrity)

Power Input 12VDC

Power Consumption IR Off: < 2W / IR On: < 5.5W

Ingress Protection / Impact Rating IP67 / IK10

Operation Conditions
-4°~122° / 10%~90% Humidity

Weight (Net, Gross) 29.28oz / 1.83 lb / 830g, 35.49 oz / 2.22 lb / 1006g

Dimensions  5.56” × 3.94” (141 × 100mm) Dia × H
