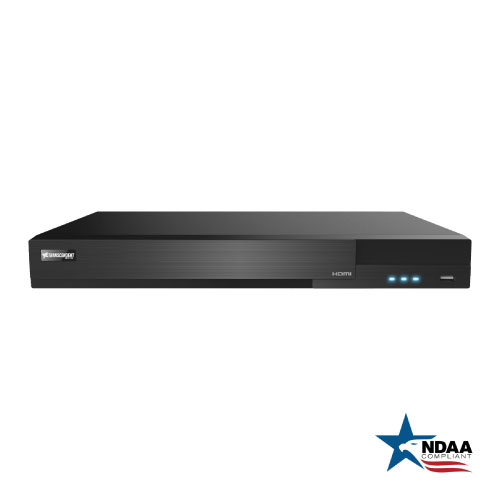

Transcendent Series NDAA Compliant 16 Channel 8.0 MegaPixel 5-In-1 HD-TVI / AHD / CVI / CVBS / IP Hybrid Digital Video Recorder
16 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs + IP Cameras
16 Ch. TVI / AHD /CVI 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1
Add 8 additional IP Cameras for a Total of 24 Cameras, and Able to Change up to 8 HDA Inputs to IP for 16 IP and 8 HDA Cameras
Recording Frame Rate: 4K@128fps, 4K Lite@240fps, 5MP@192fps, 5MP Lite@320fps, 4MP/3MP@240fps, 4MP Lite/1080P/720P/WD1/D1@480fps
H.265 / H.264 Compression
HDMI, VGA, and BNC (Spot) Video Outputs
8 Ch. Audio In + 1 Ch. Audio Out, 2-Way Audio Takes up 1 input Ch.
Smart Search – Highlight colors to display recordings in a certain time period: different colors refer to different events
PTZ Control over Coax (CoC), RS-485
16 Alarm inputs / 4 Alarm Output
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites [For Enterprise version please contact your Vitek Reseller]
2 Internal SATA2/SATA3 HDD Slot supporting up to 24TB (2 × 12TB HDD) + E-SATA
Applications for iOS & Android
Remote Viewing over the Internet via Web Browser or LAN
Mac OS® Client & VMS Central Management Software Included
Support NAT function and QRCode scanning by mobile phones
Supports both Dynamic and Static IP Addresses
HDMI 4K output, true high resolution display
Control locally via USB Mouse or IR Remote Control
Heavy duty rack ears included
3-Year Warranty
|
Video Inputs
|
16 Channels HD-TVI / AHD / CVI / CVBS Analog BNC Inputs Supporting up to 8MP[4K]
|
|
Additional IP Camera Support
|
8 IPCs (8MP [4K] and Lower @ 30fps)
|
|
Compression
|
H.265 / H.264
|
|
Recording
|
4K@128fps, 4K Lite@240fps, 5MP@192fps, 5MP Lite@320fps, 4MP/3MP@240fps, 4MP Lite/1080P/720P/WD1/D1@480fps
|
|
Local Playback
|
16 Ch.
|
|
OS
|
Embedded Linux
|
|
Video Output
|
1 × HDMI (up to 3840 × 2160) / 1 × VGA (1920 × 1080) / 1 × BNC Spot (Analog)
|
|
Multi Operation (Pentaplex)
|
Live Display/Record/Playback/Backup/Remote Access
|
|
Audio
|
Input: RCA × 8 / Output: RCA × 1 (linear, 600O)
|
|
Two-Way Audio
|
Yes – takes up one ch. audio input
|
|
Audio Compression
|
G.711(U/A)
|
|
Bit Rate
|
32Kbps ~ 5Mbps
|
|
Encode
|
VBR / CBR
|
|
Multi-Screen Display
|
1 / 4 / 6 / 8 / 9 / 13 / 16 / 25
|
|
Recording Modes
|
Manual, Timer, Motion, Sensor
|
|
Search
|
Time Sliced, Time, Event, Tag, Smart Search Management
|
|
Function
|
Play, Pause, FF, FB, Digital Zoom
|
|
Alarm
|
In/Out 16 Alarm Inputs / 4 Alarm Outputs
|
|
Alarm
|
Triggering Manual, Motion, Exception, Smart Event
|
|
Network Interface
|
RJ45 1000Mbps × 1
|
|
Remote Viewing
|
CMS / Web Browser / Mobile Platforms
|
|
Remote Playback
|
16 Ch.
|
|
Dual-stream
|
Individual Streams (Network Video + Local Rec.) Set Separately
|
|
Remote Users
|
10 users online, dual stream
|
|
RS485
|
RS485 × 1 (for PTZ) – Half Duplex: Connect to PTZ or Keyboard
|
|
PTZ Protocol
|
Control over Coax, Pelco D / Pelco P – Supports Preset and Auto Cruise, up to 255 Presets and 8 cruises
|
|
Network Protocols
|
TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
|
|
Network Bandwidth
|
Incoming: 32Mbps, Outgoing: 96Mbps
|
|
SATA HDD
|
Up to 24TB (2 × 12TB) + 1 × E-SATA
|
|
USB
|
USB 3.0 × 1; USB2.0 × 1 for Mouse and USB Backup Devices
|
|
Accessories
|
Remote Control (Optional), SATA cable, USB mouse
|
|
Power Consumption
|
= 30W (Without HDD)
|
|
Power Supply
|
DC: 12V / 4A
|
|
Working Environment
|
32º~104ºF (-10º~50ºC) / 10~90% RH
|
|
Dimensions (W × D × H)
|
14.96 × 10.55 × 1.77” / 380 × 268 × 45mm
|
|
Weight
|
4.10lbs (1.85kg) Net w/o HDD, 6.72lbs (3.05kg) Shipping Weight w/o HDD
|
