TrippLite 600VA USB 10-Outlet 1-RJ11

Product Description

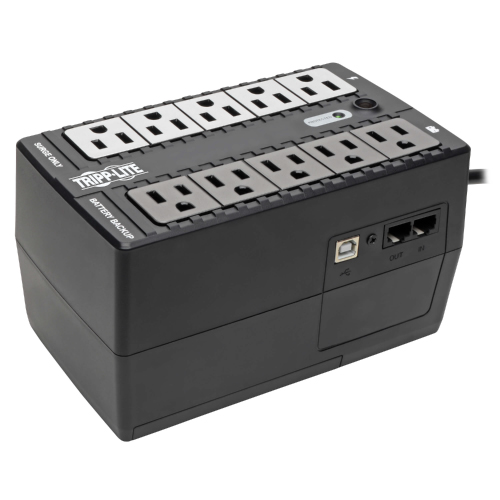

Compact desktop UPS with silent alarm provides battery backup support for your home/office network system or digital signage components.
Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Keeps AC power running during blackouts to allow time for file saves and safe shutdown
10 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
Home-friendly alarm remains silent in backup mode, sounding only when imperative
High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs
3-year limited warranty

INPUT	Input Phase    Single-Phase Rated input current (Maximum Load)    6A Nominal Input Voltage(s) Supported    120V AC UPS Input Connection Type    5-15P Input Circuit Breakers    7A UPS Input Cord Length (ft.)    5 Recommended Electrical Service    15A 120V
OUTPUT	Output Capacity (VA)    600 Output Capacity (kVA)    0.6 Output Capacity (Watts)    325 Output Capacity (kW)    0.325 Nominal Voltage Details    120v nominal output in battery mode Frequency Compatibility    50 / 60 Hz Output Voltage Regulation (Line Mode)    120V (±20%) Output Voltage Regulation (Battery Mode)    120V (±10%) UPS Output Receptacles (Surge Suppression Only)    5 UPS outlets, 5 surge-only outlets Output AC Waveform (AC Mode)    Pure sine wave Output AC Waveform (Battery Mode)    PWM sine wave Nominal Output Voltage(s) Supported    110V; 115V; 120V Output Receptacles    (10) 5-15R
BATTERY	Battery Type    Valve Regulated Lead Acid (VRLA) Runtime Full Load (min.)      1 min. (325W) Runtime Half Load (min.)      4.5 min. (163W) DC System Voltage (VDC)    12 Battery Recharge Rate (Included Batteries)    6.5 hours (10% to 90%) Battery Access    Battery access door Internal UPS Replacement Battery Cartridge    IMPORTANT BATTERY REPLACEMENT INFORMATION > If your INTERNET600U has no battery access door, please contact a local electronics repair technician to source and install a matching replacement battery; If your INTERNET600U UPS does have a battery replacement door and the original battery inside has a rating of 12V 3.6AH, please order Tripp Lite  RBC36H  replacement battery. Battery Replacement Description    Replaceable internal batteries (see manual)
USER INTERFACE, ALERTS & CONTROLS	Switches    Switch controls power off/on status Audible Alarm    Alarm reports low-battery, fault, overload and replace battery conditions LED Indicators    1 Status LED reports operating mode and fault status
SURGE / NOISE SUPPRESSION	UPS AC Suppression Joule Rating    316 UPS AC Suppression Response Time    Instantaneous UPS Dataline Suppression    1 line TEL/DSL or Ethernet EMI / RFI AC Noise Suppression      Yes
PHYSICAL	Primary Form Factor    Desktop Included Mounting Accessory Description    Wallmount installation supported using keyhole mounting tabs Installation Form Factors Supported with Included Accessories    Tower; Ultra-compact desktop; Wallmount Primary UPS Depth (mm)    185 Primary UPS Height (mm)    105 Primary UPS Width (mm)    110 Shipping Dimensions (hwd / in.)    7.36 x 5.67 x 10.86 Shipping Weight (lbs.)    4.40 UPS Housing Material    ABS UPS Power Module Dimensions (hwd, in.)    4.13 x 4.33 x 7.28 UPS Power Module Weight (kg)    1.80 UPS Power Module Weight (lbs.)    3.96 Unit Weight (lbs.)    3.960
ENVIRONMENTAL	Operating Temperature Range    32° to 104°F (0° to 40°C) Storage Temperature Range    5° to 113°F (-15° to 45°C ) Relative Humidity    0 to 90%, non-condensing AC Mode BTU / Hr. (Full Load)      13.1 AC Mode Efficiency Rating (100% Load)    >98% Operating Elevation (ft.)    Up to 10,000 ft. Operating Elevation (m)    Up to 3000m
COMMUNICATIONS	PowerAlert Software    For local monitoring via the UPS’s built-in USB port, download PowerAlert software at https://tripplite.eaton.com/products/power-alert Communications Cable    USB interface cable included WatchDog Compatibility    Supports Watchdog application, OS and hard-reboot restart options for remote applications Network Management Card Description    Network management not supported Communications Interface    USB (HID enabled)
LINE / BATTERY TRANSFER	Transfer Time      6 milliseconds typical (10 milliseconds max) Low Voltage Transfer to Battery Power (Setpoint)    95 High Voltage Transfer to Battery Power (Setpoint)    145
FEATURES & SPECIFICATIONS	Cold Start (Startup in Battery Mode During a Power Failure)    Cold-start operation supported High Availability UPS Features      Surge/noise protection Green Energy-Saving Features    Greater than 95% efficiency - GREEN UPS
APPLICATIONS	UPS Applications    Computer/Peripherals; Retail/Point of Sale; Hospitality
STANDARDS & COMPLIANCE	Product Compliance    RoHS; FCC Part 15 Class B (USA)
