Tripp Lite Heavy-Duty Power Extension Co

Tripp Lite Heavy-Duty Power Extension Co

Item #
MISCAB02
Brand
Tripplite
Model
P005-006

Color
Black
Warranty
Manufacturer
Condition
Bulk
If out of stock
3 to 5 Days
Product Description

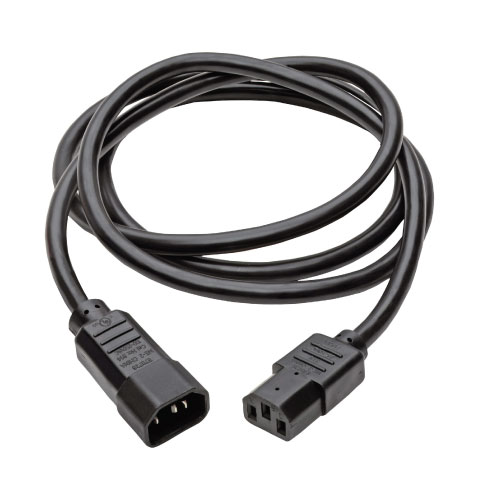

Heavy-Duty PDU Power Cord, C13 to C14 - 15A, 250V, 14 AWG, 6 ft. (1.83 m), Black

Computer power extension cord
connects devices with C13/C14 power connectors or extends your existing power connection by 6 ft.
Recommended for powering computers, servers and other network devices
6-ft. (1.83 m) length allows flexibility in placing devices in relationship to AC outlet
PDU-style cord replaces or upgrades standard power cord provided by manufacturer
Thick 14 AWG wire gauge manages high power levels required for larger equipment

Features
C14-to-C13 Power Cable
for Network Devices That Require a Heavy-Gauge Connection
This IEC-320-C14 to IEC-320-C13 cable features 14 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This C14 male to C13 female cord can be used to connect a computer, server, monitor or drive to a UPS system or PDU or replace or upgrade the standard power cord provided by the device's manufacturer. The 6-ft. (1.83 m) length allows you flexibility in placing equipment with respect to the power outlet.

Package Includes
P005-006 Heavy-Duty
C13 to C14 PDU-Style Power Extension Cable, 6-ft. (1.83 m), Black


OVERVIEW UPC Code:    037332150004
Device Compatibility:    Computer; Monitor/HDTV; Printer; Server; Router; Network Switch; UPS; PDU
Country/Region:    Global

INPUT
Maximum Input Amps:    15
Voltage Compatibility (VAC):    100-250

PHYSICAL
Plug Color :   Black
Cable Jacket Color:    Black
Cable Jacket Material:    PVC
Cable Jacket Rating :   VW-1
Power Cord Jacket Type;    SJT
Cable Outer Diameter (OD):    9.3mm
Number of Conductors:    3
Wire Gauge (AWG):    14
Cable Length (ft.):    6
Shipping Dimensions (hwd / in.):    1.00 x 7.00 x 11.00
Shipping Weight (lbs.):   0.78

ENVIRONMENTAL
Operating Temperature Range:    -4 F TO 140 F (-20 C TO 60 C)
Storage Temperature Range:    -4 F TO 140 F (-20 C TO 60 C)
Operating Humidity Range:    10 TO 65% RH
Storage Humidity Range:    10 TO 65% RH

CONNECTIONS
Side A - Connector 1:    IEC-320-C14
Side B - Connector 1:    IEC-320-C13

FEATURES & SPECIFICATIONS
High Voltage:    Yes
Angled Plug:    No

STANDARDS & COMPLIANCE
Certifications:    UL/Cul, RoHS, REACH
Approvals:    UL/CSA
