INPUT
|
Input Phase Single-Phase
Rated input current (Maximum Load) 10A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P
Input Circuit Breakers 10A
UPS Input Cord Length (ft.) 5
Recommended Electrical Service 15A 120V
|
|
| OUTPUT |
Output Capacity (VA) 700
Output Capacity (kVA) 0.7
Output Capacity (Watts) 350
Output Capacity (kW) 0.35
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
Output Voltage Regulation (Line Mode) 120V (+6%/-12%)
Output Voltage Regulation (Battery Mode) 120V (±10%)
UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets, 4 surge-only outlets
Output AC Waveform (AC Mode) Pure sine wave
Output AC Waveform (Battery Mode) PWM sine wave
Nominal Output Voltage(s) Supported 110V; 115V; 120V
Output Receptacles (8) 5-15R
|
|
BATTERY
|
Battery Type Valve Regulated Lead Acid (VRLA)
Runtime Full Load (min.) 2 min. (350W)
Runtime Half Load (min.) 10 min. (175W)
DC System Voltage (VDC) 12
Battery Recharge Rate (Included Batteries) 8 hours (10% to 90%)
Battery Access Battery access door

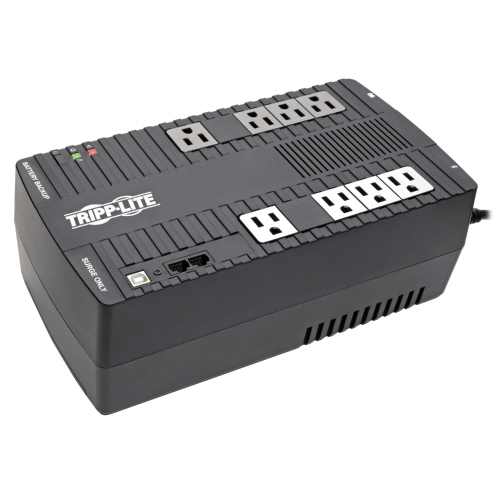

Internal UPS Replacement Battery Cartridge IMPORTANT BATTERY REPLACEMENT INFORMATION > If the original battery inside your AVR700U UPS has a rating of 12V 7AH, please order Tripp Lite RBC51 (quantity 1) replacement battery; If the original battery inside your AVR700U UPS has a rating of 12V 5AH, please contact Tripp Lite for assistance
Battery Replacement Description Replaceable internal batteries (see manual)
|
|
USER INTERFACE, ALERTS & CONTROLS
|
Switches Power off/on switch
Audible Alarm UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
LED Indicators 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
|
|
| SURGE / NOISE SUPPRESSION |
UPS AC Suppression Joule Rating 316
UPS AC Suppression Response Time Instantaneous
UPS Dataline Suppression 1 line TEL/DSL or Ethernet
EMI / RFI AC Noise Suppression Yes
|
|
PHYSICAL
|
Primary Form Factor Desktop
Installation Form Factors Supported with Included Accessories Tower; Ultra-compact desktop; Wallmount
Primary UPS Depth (mm) 305
Primary UPS Height (mm) 110
Primary UPS Width (mm) 163
Shipping Dimensions (hwd / in.) 9.40 x 6.20 x 15.00
Shipping Weight (lbs.) 14.80
UPS Housing Material ABS
UPS Power Module Dimensions (hwd, in.) 4.33 x 6.4 x 12
UPS Power Module Weight (kg) 6.21
UPS Power Module Weight (lbs.) 13.7
Unit Weight (lbs.) 13.700
|
|
| ENVIRONMENTAL |
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range 5° to 113°F (-15° to 45°C )
Relative Humidity 0 to 90%, non-condensing
AC Mode BTU / Hr. (Full Load) 61
AC Mode Efficiency Rating (100% Load) >95%
Operating Elevation (ft.) Up to 10,000 ft.
Operating Elevation (m) Up to 3000m
|
|
| COMMUNICATIONS |
PowerAlert Software For local monitoring via the UPS’s built-in USB port, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
Communications Cable USB interface cable included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Management Card Description Network management not supported
Communications Interface USB (HID enabled)
|
|
LINE / BATTERY TRANSFER
|
Transfer Time 6 milliseconds typical (10 milliseconds max)
Low Voltage Transfer to Battery Power (Setpoint) 89
High Voltage Transfer to Battery Power (Setpoint) 145
|
|
| FEATURES & SPECIFICATIONS |
Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
High Availability UPS Features Automatic Voltage Regulation (AVR); Surge/noise protection
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
Grounding Details Includes side-panel grounding lug
|
|
| APPLICATIONS |
UPS Applications Computer/Peripherals; Retail/Point of Sale; Hospitality
|
|
| STANDARDS & COMPLIANCE |
Product Compliance RoHS; FCC Part 15 Class A (USA)
|
|
| VOLTAGE REGULATION |
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
Overvoltage Correction Input voltages between 128 and 145 are reduced by 15%
Undervoltage Correction Input voltages between 89 and 108 are boosted by 18%
|
