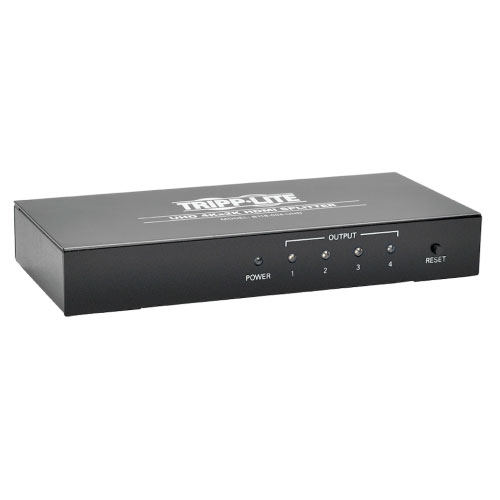

1x 4 HDMI Splitter Transmits 4K Audio/Video to 4 HDMI Displays at the Same Time
Ideal for displaying digital signage in classrooms, healthcare facilities, churches, offices, restaurants, bars and trade shows, this Ultra HD HDMI splitter is quick and easy to install. It connects to an
HDMI source device, such as a computer, media server, cable box/DVR or Blu-ray player, and transmits an audio/video signal to four HDMI monitors, projectors or televisions simultaneously. You
can daisy-chain up to three levels of splitters, which expands the total number of connected displays to 256.
Note: The B118-004-UHD is an HDMI Splitter, it sends the same image to all connected displays. If you would like to extend an image over multiple displays you will need an MST hub, like the
B156-002-HD-V2.
Supports Ultra High Definition Signals up to 39 ft.
Using standard 28 AWG HDMI cabling, the B118-004-UHD Ultra HD HDMI splitter distributes a 4K audio/video signal up to 39 feet. Place your HDMI source up to 16.4 feet from the splitter
and the splitter up to 23 feet from an HDMI display for a maximum distance of 39.4 feet between source and display.
Specifications
OVERVIEW
|
UPC Code 037332183897 AC Adapter Input: 100-240V, 50/60Hz, 1.5A; Output: 5V, 2A, 4 ft.
|
INPUT
|
Voltage Compatibility (VAC) 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 External Power Supply Input Specs (V / Hz / A) 100-240V, 50/60Hz, 0.35A External Power Supply Output Specs (V / A) 5V / 2A External Power Supply Cord Length (ft.) 4 External Power Supply Cord Length (m.) 1.2 External Power Supply DC Barrel Connector Specs OD: 3.5 x 1.35 x 7.5mm, Positive Pin, Negative Sleeve External Power Supply Plug(s) NEMA 1-15P North America External Power Supply Certifications CE; ETL; UL
|
USER INTERFACE, ALERTS & CONTROLS
|
LED Indicators Red (Power), Blue (1, 2, 3, 4
|
PHYSICAL
|
Material of Construction Steel Rackmountable No Shipping Dimensions (hwd / in.) 2.60 x 10.00 x 7.90 Shipping Weight (lbs.) 1.52 Unit Dimensions (hwd / in.) 0.87 x 6.1 x 2.7 Unit Packaging Type Box Unit Weight (lbs.) 0.6
|
ENVIRONMENTAL
|
Operating Temperature Range 32 to 158 °F (0 to 70 °C) Storage Temperature Range 14 to 176 °F (-10 to 80 °C) BTUs 11.3 BTU/Hr Power Consumption (Watts) 3.3 Operating Humidity Range 10% to 85 % RH, Non-Condensing Storage Humidity Range 5% to 90% RH, Non-Condensing
|
CONNECTIONS
|
Ports 4 Side A - Connector 1 HDMI (FEMALE) Side B - Connector 1 (4) HDMI (FEMALE)
|
PORT EXPANSION
|
Max Distance (Between any 2 Units) 10ft (3m) Max Number of Ports (Entire Chain) 256
|
FEATURES & SPECIFICATIONS
|
Max Distance (Between any 2 Units) 10ft (3m) Max Number of Ports (Entire Chain) 256 FEATURES & SPECIFICATIONS Max Supported Video Resolution 4K @ 30Hz (3840 x 2160) HDMI Specification 1.4 HDCP Specification 1.3 Audio Specification DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound Driver Required No Max Supported Color Depth 36-bit Deep Color EDID Compatible Yes 3D Video Supported Yes Technology HDMI
|
STANDARDS & COMPLIANCE
|
Certifications CE, FCC, RoHS, REACH
|
