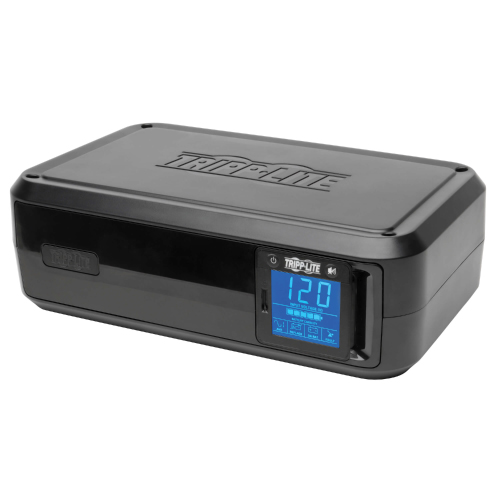

Tripp Lite 1000VA LCD USB AVR 8-Outlet

Item #

USBX10T

Brand

Tripplite

Model

SMART1000LCD

Color

Black

Warranty

3 Year /1 Year OTC /2 Year MFG

Condition

Retail Box

If out of stock

3 to 5 Days

Product Description

Provides reliable 1000VA/500W power protection for your desktop computer, network workstation, audio/video components or media center. Protects against surges, line noise, blackouts and brownouts.

Supports a basic desktop PC up to 60 min. during power outage
Features 8 protected outlets—4 battery-protected, 4 surge-only
Offers automatic voltage regulation (AVR)
LCD screen reports real-time UPS and power status
Plugs into any NEMA 5-15R socket
3-year limited warranty


OVERVIEW	UPC Code 037332124999 UPS Type Line-Interactive INPUT Input Phase Single-Phase Rated input current (Maximum Load) 12A Nominal Input Voltage(s) Supported 120V AC UPS Input Connection Type 5-15P; Right-Angled UPS Input Cord Length (ft.) 6 Recommended Electrical Service 15A 120V

OUTPUT	Output Capacity (VA) 1000 Output Capacity (kVA) 1 Output Capacity (Watts) 500 Output Capacity (kW) 0.5 Nominal Voltage Details 115v nominal output in battery mode Frequency Compatibility 60 Hz Output Voltage Regulation (Battery Mode) +/- 5% UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets, 4 surge-only outlets Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets) Output AC Waveform (AC Mode) Sine wave Output AC Waveform (Battery Mode) PWM sine wave Nominal Output Voltage(s) Supported 110V; 115V; 120V Output Receptacles (8) 5-15R

BATTERY	Battery Type Valve Regulated Lead Acid (VRLA) Runtime Full Load (min.) 3 min. (500W) Runtime Half Load (min.) 10 min. (250W) DC System Voltage (VDC) 12 Battery Recharge Rate (Included Batteries) Less than 16 hours from 10% to 90% Battery Access Battery access door Internal UPS Replacement Battery Cartridge RBC51 Battery Replacement Description Hot-swappable, user replaceable batteries VOLTAGE REGULATION Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89 Undervoltage Correction Input voltages between 89 and 104 are boosted by 14%

USER INTERFACE, ALERTS & CONTROLS	Front Panel LCD Display Backlighted LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status; LCD screen rotates for rack/tower viewing Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; dimmer switch controls LCD brightness Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status Audible Alarm Audible alarm indicates power-failure and low-battery status; alarm can be disabled using PowerAlert software LED Indicators Front panel LCD display SURGE / NOISE SUPPRESSION UPS AC Suppression Joule Rating 1038 UPS AC Suppression Response Time Instantaneous UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); Coax jacks (1 set) EMI / RFI AC Noise Suppression Yes

PHYSICAL	Primary Form Factor Tower Installation Form Factors Supported with Included Accessories Tower; Ultra-compact desktop Primary UPS Depth (mm) 184 Primary UPS Height (mm) 301 Primary UPS Width (mm) 93 Shipping Dimensions (hwd / in.) 15.40 x 4.80 x 10.60 Shipping Weight (lbs.) 16.70 UPS Housing Material ABS UPS Power Module Dimensions (hwd, in.) 11.84 x 3.66 x 7.24 UPS Power Module Weight (kg) 7.05 UPS Power Module Weight (lbs.) 15.55 Unit Weight (lbs.) 14.9000

ENVIRONMENTAL	Operating Temperature Range 32° to 104°F (0° to 40°C) Storage Temperature Range 5° to 122°F (-15° to 50°C) Relative Humidity 0 to 95%, non-condensing AC Mode BTU / Hr. (Full Load) 61 Battery Mode BTU / Hr. (Full Load) 510 AC Mode Efficiency Rating (100% Load) 97%

COMMUNICATIONS	PowerAlert Software For local monitoring via the UPS’s built-in USB port, download PowerAlert software at https://tripplite.eaton.com/products/power-alert Communications Cable USB cable included WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications Network UPS Tools (NUT) Compatibility NUT compatible. See a full list of NUT compatible Tripp Lite UPS systems at https://networkupstools.org/stable-hcl.html?manufacturer=Tripp%20Lite Network Management Card Description Network management not supported Communications Interface USB (HID enabled) LINE / BATTERY TRANSFER Transfer Time 3 milliseconds Low Voltage Transfer to Battery Power (Setpoint) 89 High Voltage Transfer to Battery Power (Setpoint) 139 FEATURES & SPECIFICATIONS Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported High Availability UPS Features Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS

APPLICATIONS	UPS Applications Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality

STANDARDS & COMPLIANCE	Product Certifications CSA (Canada); NOM (Mexico); UL 1778 Product Compliance RoHS; FCC Part 15 Class B (USA)

WARRANTY & SUPPORT	Product Warranty Period (U.S. & Canada) 3-year limited warranty Connected Equipment Insurance (U.S., Canada & Puerto Rico)
