Tplink 16pt Gb Switch Metal
Tplink 16pt Gb Switch Metal
Item #
NS16HTP01
Brand
TP-Link
Model
TL-SG116E

Color
Black
Warranty
Lifetime
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

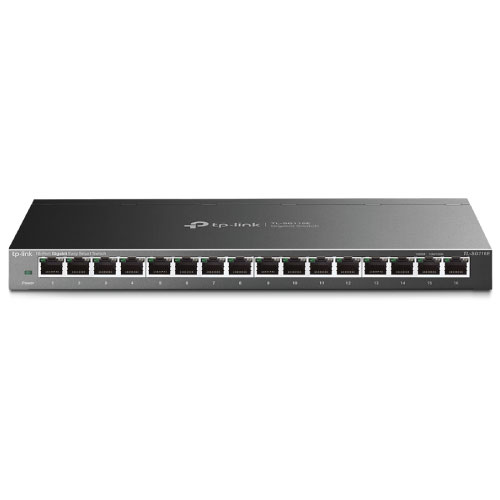

The TL-SG116E Desktop Switch provides you an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG116E can always help you deal with your business quickly and easily.

More features, more choices
Administrators can designate the priority of traffic based on QoS to ensure that voice and video applications remain clear and lag-free. IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Features:
16 10/100/1000Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity Fanless
Power Consumption External Power Adapter
(Output: 12VDC/1A)
Dimensions ( W x D x H ) 11.3 x 4.4 x 1.0 in.
(286 x 111.7 x 25.4 mm)
Max Power Consumption 9.2W(220V/50Hz)
Max Heat Dissipation 31.4BTU/h
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
Certification FCC, CE, RoHS
Package Contents TL-SG116E
Power Cord
Installation Guide
Rubber Feet
System Requirements Microsoft• Windows• for Easy Smart Utility
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
