TP-Link MC FBR SM SC LX/LH 1000 to GIG C

TP-Link MC FBR SM SC LX/LH 1000 to GIG C

Item #
NLMGFTP
Brand
TP-Link
Model
MC210CS

Color
Black
Warranty
1 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

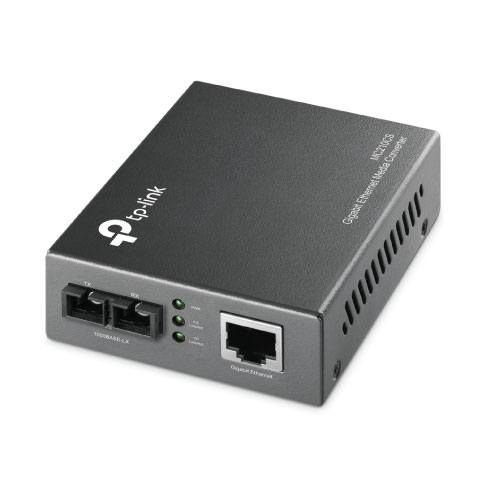

TP-Link MC210CS MC FBR SM SC LX/LH 1000 to GIG


The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers(9.3 miles).

10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX Complies with IEEE 802.3ab and IEEE 802.3z Extends fiber distance up to 9.3 miles (15km)




Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function Extends fiber distance up to 9.3 miles (15km)
Ports 1 x 1000M SC/UPC port, 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 1000BASE-LX Single-mode Fiber
Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m) , EIA/TIA-568 100O STP (maximum 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External Power Adapter
Max Power Consumption 1.8W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
