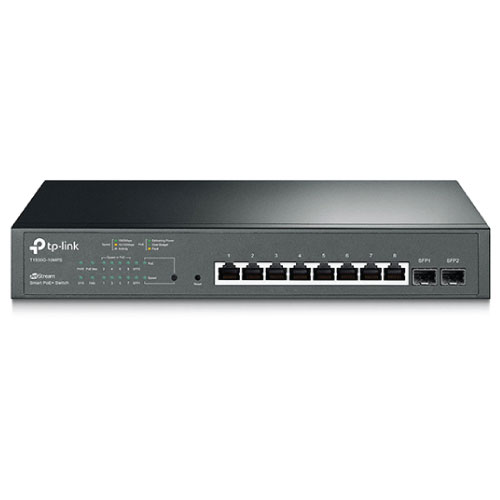

Tp-Link Jetstream 8port GB PoE 2SFP 116W
Tp-Link Jetstream 8port GB PoE 2SFP 116W
Item #
NS08HTP03
Brand
TP-Link
Model
T1500G-10MPS

Color
Black
Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

TP-Link JetStream Gigabit Smart Switch T1500G-10MPS is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support the 802.3af/at (PoE+) standard with total PoE power budget of 116W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

TP-Link’s JetStream Gigabit Smart Switch T1500G-10MPS is especially designed for the small and medium business networks that require effi­cient network management.
T1500G-10MPS comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service (QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.


Advanced QoS features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice application will operate with much smoother performance.


Features:
Features 8 802.3af/at compliant PoE+ ports, with total PoE power budget of 116W and useful PoE power management features
Gigabit Ethernet connections on all ports provide full speed of data transferring
Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
WEB/CLI managed modes, SNMP, RMON bring abundant management features
Dual Firmware Image improves reliability and up-time of your network


Standards EEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface: 8 10/100/1000Mbps RJ45 Ports, all supporting PoE+
2 100/1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Network Media: 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
Fan Quantity: 1
Physical Security Lock: Yes
PoE+ Ports(RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 116W
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 15.61W (220V/50Hz with no PD connected)
139.52W (220V/50Hz with 116W PD connected)
Max Heat Dissipation 53.26 BTU/h (with no PD connected) 476.04 BTU/h (with 116W PD connected)
Switching Capacity 20Gbps
Packet Forwarding Rate: 14.9Mpps
MAC Address Table: 8K
Packet Buffer Memory 512KB
Jumbo Frame 9KB
