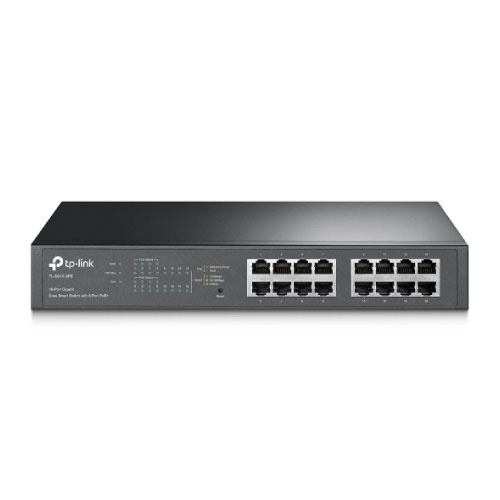

TP-Link Easy Smart TL-SG1016PE 8p/8e D/R

TP-Link Easy Smart TL-SG1016PE 8p/8e D/R

Item #
NS16JTP01
Brand
TP-Link
Model
TL-SG1016PE

Color
BLACK
Warranty
2 YEAR
If out of stock
5 to 7 Days
Add On Products
Product Description
16-Port Gigabit Easy Smart Switch with 8-Port PoE+
16× 10/100/1000Mbps RJ45 ports
Equipped with 8× PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 150 W,* up to 30 W per port
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration


What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 150 W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function
Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6.

Easy To Use
TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.



HARDWARE FEATURES
Standards and Protocols    IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.1q
IEEE 802.1p

Interface
16× 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
1

Physical Security Lock
Yes

PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1 to Port 8
PoE Power Budget: 150 W

Dimensions ( W x D x H )
11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)

Mounting
Rack Mountable/ Desktop

Max Power Consumption
8.a W (with no PD connected)
177.7 W (with 150 W PD connected)

Max Heat Dissipation
27.5 BTU/h (with no PD connected)
605.9 BTU/h (with 150 W PD connected)

PERFORMANCE
Switching Capacity
32 Gbps

Packet Forwarding Rate
23.8 Mbps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
10 KB

SOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management
Web-based GUI
Easy Smart Configuration Utility

Transmission Method
Store-And-Forward

OTHERS
Certification
FCC, CE, RoHS

Package Contents
TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet

System Requirements
Microsoft® Windows® for Easy Smart Utility

Environment
Operating Temperature: 0–50 ? (32–122 ?)
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% non-condensing
Storage Humidity: 5–90% non-condensing

*
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
