TP-Link AC1750 3T3R 4PORT Gb W/USB

Item #

NWR04AT021

Brand

TP-Link

Model

ARCHER A7

Color

Black

Warranty

1 Year

Condition

Retail Box

If out of stock

5 to 7 Days

Product Description

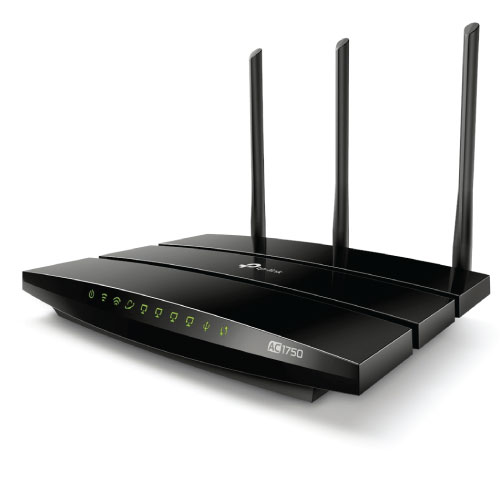

Archer A7
AC1750 Wireless Dual Band Gigabit Router

    Supports 802.11ac standard - Faster than wireless N speeds
    Simultaneous 2.4GHz 450 Mbps and 5GHz 1300 Mbps connections for 1.75Gbps of total available bandwidth*
    USB Port - easily shares files & media with networked devices or remotely via FTP server
    Guest Network Access - provides secure Wi-Fi access for guests sharing your home or office network
    Easy setup and management with Tether App

WIRELESS
Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC1750 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 450 Mbps (802.11n) WiFi Range 3 Bedroom Houses3× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas WiFi Capacity MediumDual-Band Allocate devices to different bands for optimal performance Working Modes Router Mode Access Point Mode
HARDWARE
Processor Qualcomm CPU Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports USB Support 1× USB 2.0 Port Supported Partition Formats: NTFS, FAT32 Supported Functions: FTP Server Media Server Samba Server Buttons Wi-Fi On/Off Button Power On/Off Button WPS/Reset Button Power 12 V ? 1.5 A
SOFTWARE
Protocols IPv4 IPv6 OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. All OneMesh Products> Parental Controls URL Filtering Time Controls WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Virtual Server Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Tether App Webpage
PHYSICAL
Dimensions (W×D×H) 9.6 × 6.4 × 1.3 in (243 × 160.6 × 32.5 mm) Package Contents Wi-Fi Router Archer C7 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm WiFi Reception Sensitivity 5GHz: 11a 6Mbps-96dBm 11a 54Mbps: -79dBm 11ac HT20: -71dBm 11ac HT40: -66dBm 11ac HT80: -63dBm 2.4GHz: 11g 54M: -77dBm 11n HT20: -74dBm 11n HT40: -72dBm
*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
