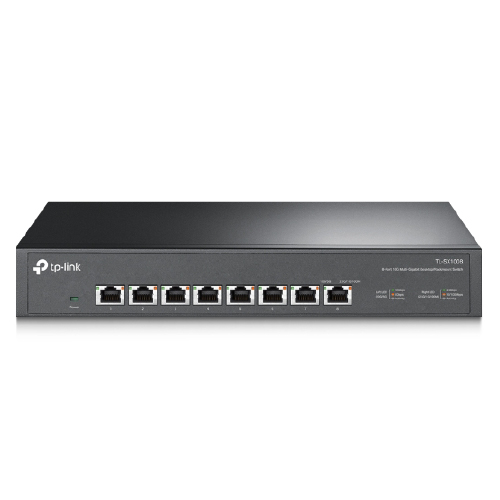

8-Port 10G Desktop/Rackmount Switch
Eight 10 Gbps Ports. 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity.
Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment.
Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
Low-Noise Operation. Smart fan speed adjustment ensures minimal noise to be non-distracting when use.
Wide Operation Temperature. Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50 ?).
Plug and Play. Allows for easy deployment without the need for a technician.
|
HARDWARE FEATURES:
|
Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface: 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity: 1 smart fan with adjustable speed
External Power Supply: 100–240 VAC, 50/60 Hz, 0.8A
LED Indicator: System Power: 1 Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
Dimensions (W x D x H): 11.6×7.1×1.7 in (294×180×44 mm)
Max Power Consumption: 31.2 W
|
|
PERFORMANCE: |
Switching Capacity: 160 Gbps
Packet Forwarding Rate: 119.0 Mpps
MAC Address Table: 32 K
Packet Buffer Memory: 2 Mb
Jumbo Frame: 10 KB
|
|
SOFTWARE FEATURES:
|
Advanced Features: 802.3X Flow Control 802.1p/DSCP QoS
Transfer Method: Store and Forward
|
|
OTHERS:
|
Certification: CE, FCC, RoHS
Package Contents: 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008 Power Cord Installation Guide Rackmount Kit Rubber Feet
|
|
Environment: |
Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
|
