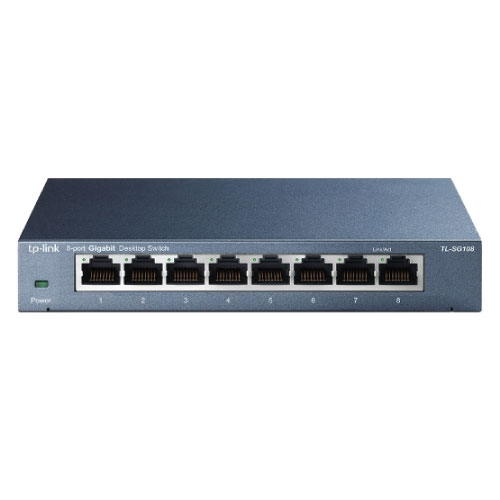

Tp-Link 8 Port 10-1000 Switch Metal
Tp-Link 8 Port 10-1000 Switch Metal
Item #
NS08GTP1
Brand
TP-Link
Model
TL-SG108

Color
Black
Warranty
1 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 82% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.


Features:
8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, no configuration needed

Standards and Protocols IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p
Fan Quantity Fanless
External Power Supply External Power Adapter 100VAC ~ 240VAC
(Output: 9VDC / 0.6A)
Buffer Size 1.5Mb
LED Indicator Power
Port network activity (on each network module)
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in.
(158 × 101 × 25 mm)
Max Power Consumption 3.3W
Max Heat Dissipation 11.3 BTU/h
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 16KB
Advanced Features Green Technology for energy saving
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
Certification FCC, RoHs
Package Contents 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
