Tp-Link 8 Port 10-1000 8 PoE+ Rm 124w
Tp-Link 8 Port 10-1000 8 PoE+ Rm 124w
Item #
NS08HTP2
Brand
TP-Link
Model
TL-SG1008MP

Color
Black
Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

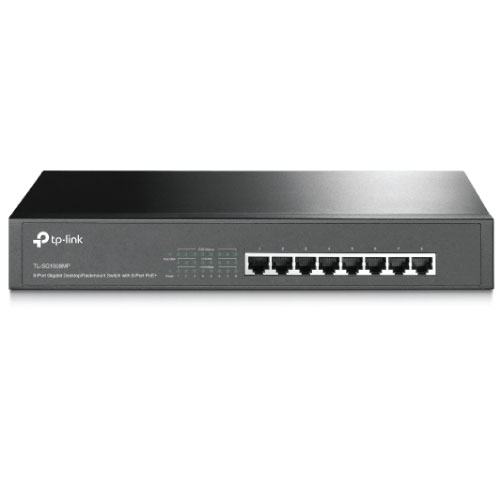

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology reduces power consumption, making it an eco-friendly solution for your business network.

All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 126W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, while no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Features:
8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
Innovative energy-efficient technology reduces power consumption
Rack mountable with included rack mount bracket
Total PoE power budget up to 126W
Plug and play design, no configuration required


Standards 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity 1
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
PoE+ Ports(RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 126W
Mac Address Table 4K
Buffer Size 1.5Mbits
Switching Capacity 16Gbps
Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
Mounting Desktop/Rack Mountable
Max Power Consumption 9.89W(220V/50Hz. no PD connected)
140.67W(110V/60Hz. with 126W PD connected)
Max Heat Dissipation 33.74BTU/h(no PD connected)
492.56BTU/h(with 126W PD connected)
Advanced Features Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer Method Store-And-Forward
Certification FCC, RoHS
Package Contents TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0?~50? (32?~122?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
