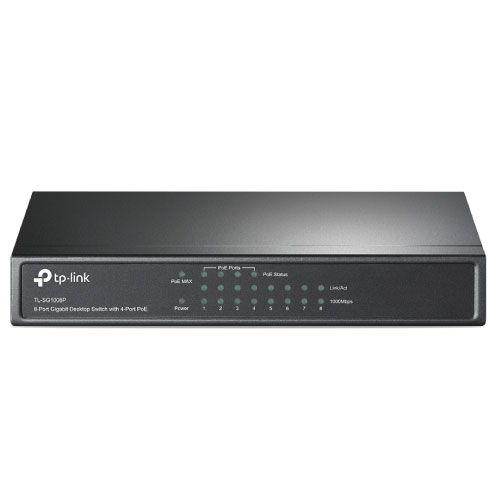

TP-Link 8 Port 10-1000 4 Port PoE 53w

TP-Link 8 Port 10-1000 4 Port PoE 53w

Item #
NS08HTP
Brand
TP-Link
Model
TL-SG1008P

Color
Black
Warranty
1 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).


Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Features:
8 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Requires no configuration and installation
802.1p/DSCP QoS enable smooth latency-sensitive traffic
PoE power up to 15.4W for each PoE port
PoE power up to 55W for all PoE outputs


Standards IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3af (Power over Ethernet 802.3at Type 1)
IEEE 802.3at (Power over Ethernet 802.3at Type 2)
IEEE 802.3az (Energy Efficient Ethernet EEE)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode)
Specifications:
Interface: 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: No
External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45): Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W

Backbound Bandwidth: 16Gbps
Mac Address Table: 4K
Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in.
(171 × 98 × 27 mm)
Max Power Consumption 5.5W(no PoE load)
65.2W(with 55W PoE load)
Max Heat Dissipation 18.7 BTU/h (no PoE load)
222.6 BTU/h (with 55W PoE load)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
OTHERS
Certification: FCC, RoHS
Package Contents: TL-SG1008P, Power Adapter, Installation Guide
Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
