TP-Link 5 Port 10-1000 Mini Switch Mtl

TP-Link 5 Port 10-1000 Mini Switch Mtl

Item #
NS05GTP1
Brand
TP-Link
Model
TL-SG105

Color
Blue
Warranty
5 Year /1 Year OTC /4 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

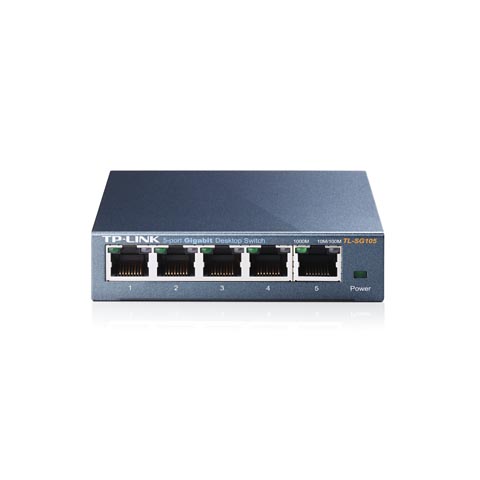

5-Port 10/100/1000Mbps Desktop Switch TL-SG105

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) and IGMP snooping function
Plug and play ,no configuration needed

The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.


Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use. Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. * Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.

Features:
Innovative energy-efficient technology saves power up to 65%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Steel design, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) and IGMP snooping function
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
9K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
Fanless design ensures quiet operation
Plug and Play design simplifies installation

Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.1p
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
Power Consumption Maximum: 2.4W
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in.
(100 x 98 x 25 mm)
Max Power Consumption 2.3W (220V/50Hz)
Max Heat Dissipation 7.83 BTU/h
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1Mb
Jumbo Frame 16KB
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
