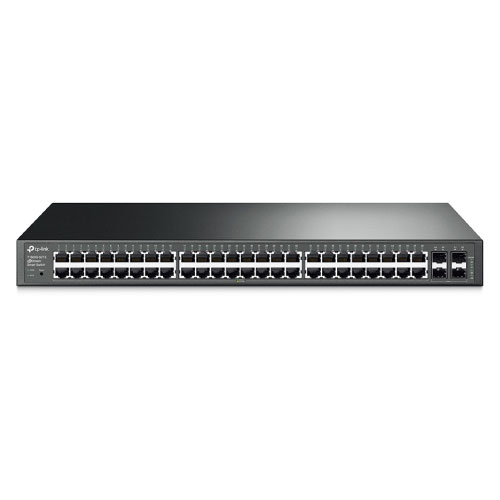

T1600G-52TS
JetStream 48-Port Gigabit Smart Switch with 4 SFP Slots
Gigabit Ethernet connections on all ports provide full speed of data transferring
L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
What This Product Does
TP-LINK JetStream Gigabit Smart Switch T1600G-52TS is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies. Equipped with 48 gigabit RJ45 ports and 4 SFP slots, T1600G-52TS supports multiple useful features. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2/L2+ switch and gigabit capability, TP-LINK JetStream Gigabit Smart Switch T1600G-52TS provides you the ideal access-edge solution.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant L2 and L2+ Features
For more application of L2 switches, T1600G-52TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-52TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
Enterprise Level Management Features
T1600G-52TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image,which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
| Specifications
|
| Standards and Protocols |
IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,
IEEE802.3z,IEEE 802.3x,IEEE 802.1d,
IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1p
|
|
Interface
|
48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
|
|
Fan Quantity
|
Fanless
|
|
Dimensions ( W x D x H )
|
17.3 × 8.7 × 1.7 in.
(440 × 220 × 44 mm)
|
|
Mounting
|
19" 1U rack mountable
|
|
Max Power Consumption
|
32.8 W
|
|
Max Heat Dissipation
|
111.9 BTU/h
|
PERFORMANCE
|
| Bandwidth/Backplane |
104Gbps
|
|
Packet Forwarding Rate
|
77.4Mpps
|
|
MAC Address Table
|
16k
|
|
Jumbo Frame
|
9216 Bytes
|
SOFTWARE FEATURES
|
Quality of Service
|
Support 802.1p CoS/DSCP priority
|
|
| Packet Buffer Memory |
|
|
| Jumbo Frame |
|
SOFTWARE FEATURES
|
| Quality of Service |
Quality of Service
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN
|
|
L2 and L2+ Features
|
Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED
|
|
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
|
|
| Access Control List |
L2~L4 package filtering based on source and destination MAC addresses, IP addresses, or TCP/UDP ports
IPv6 ACL
|
|
| Security |
SSH v1/v2
SSL v3/TLS v1
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
AAA
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
|
|
IPv6
|
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
|
|
IPv6 Applications
|
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
|
|
Management
|
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
|
|
| OTHERS |
Certification CE, FCC, RoHS
|
|
Package Contents
|
T1600G-52TS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
|
|
System Requirements
|
Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
|
|
Environment
|
Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
