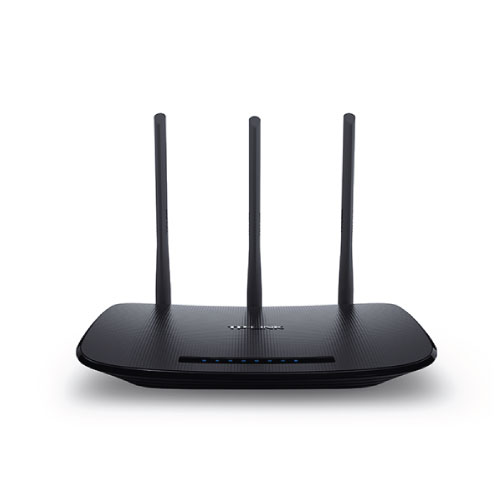

TP-Link 450N 4Port 10/100 RTR

TP-Link 450N 4Port 10/100 RTR

Item #
NWR04NE1
Brand
TP-Link
MFG Part No
TL-WR940N
Model
TL-WR940N

Color
White
Warranty
2 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description
TP-Link’s TL-WR940N is a high-speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR940N gives users wireless performance at up to 450Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

450Mbps Wireless N Router
450Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
Three antennas increase the wireless robustness and stability
Supports 3 modes: Router, Range Extender and Access Point modes
Easy wireless security encryption at a push of WPS button
Bandwidth Control: assigns your preferred devices with more bandwidth



WIRELESS
Standards
Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
N450
2.4 GHz: 450 Mbps (802.11n)
WiFi Range
2 Bedroom Houses
3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity    Legacy
Working Modes
Router Mode
Access Point Mode
Range Extender Mode
HARDWARE
Processor
Single-Core CPU
Ethernet Ports
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons
WPS/Wi-Fi Button
Power
On/Off Button
Reset Button
Power    9 V ? 0.6 A
SECURITY
WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
NAT Forwarding
VIrtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
DHCP
Address Reservation
DHCP Client List
Server
DDNS
NO-IP
Comex
DynDNS
Management
Tether App
Webpage
Check Web Emulator
PHYSICAL
Dimensions (W×D×H)
9.1 × 5.7 × 1.4 in
(230 × 144 × 35mm)
Package Contents
Wi-Fi Router TL-WR940N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC
Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power    FCC:
<30dBm
WiFi Reception Sensitivity    450M: -68dBm@10% PER
216M: -70dBm@10% PER
130M: -78dBm@10% PER
54M: -74dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -93dBm@8% PER

If you can't find what you're looking for here, please contact your sales representative.
