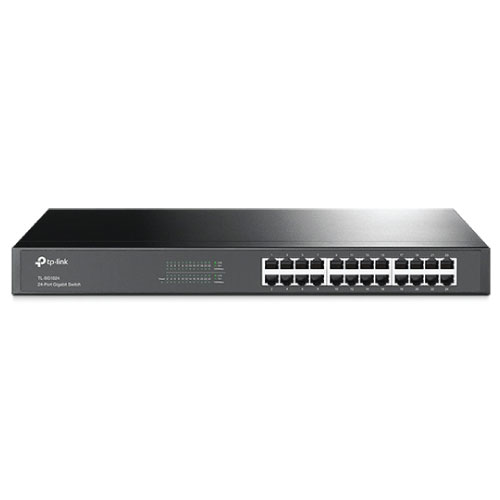

TP-Link 24Pt 10/1000 Rack Mount Switch

TP-Link 24Pt 10/1000 Rack Mount Switch

Item #
NS24GTP01
Brand
TP-Link
Model
TL-SG1024

Color
Black
Warranty
5 Year /1 Year OTC /4 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

The TL-SG1024 24-Port Gigabit rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.

Gigabit Switch
Featured with 24 10/100/1000Mbps ports, TL-SG1024 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Superior Performance
The TL-SG1024 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Features
Innovative energy-efficient technology saves power up to 40% 100% Data filtering rate eliminates all error packets Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput 48Gbps Switching Capacity Auto-MDI/MDIX eliminates the need for crossover cables Supports MAC address auto-learning and auto-aging Support the port N-Way Auto-Negotiation, Store and Forward. Compact size design for desktops, Rackmountable Plug and Play design simplifies installation

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 17.3 x 7.1 x 1.7 in.
(440 x 180 x 44 mm)
Mounting 19" Rack Mountable
Max Power Consumption 13.6W
Max Heat Dissipation 46.4BTU/h
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 210KB
QoS 802.1p/DSCP QoS*
*Only for V11 and later version
Green Technology Yes
Certification FCC, CE, RoHS
Package Contents 24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
