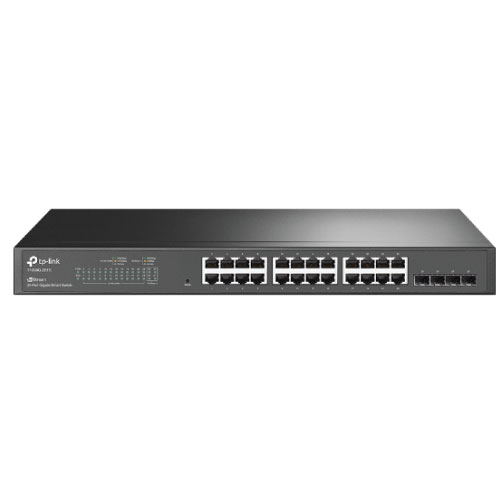

Tp-Link 24P GIG Smart Switch 4 SFP CMB
Tp-Link 24P GIG Smart Switch 4 SFP CMB
Item #
NS24ITP02
Brand
TP-Link
Model
T1600G-28TS

Color
Black
Warranty
5 Year /1 Year OTC /4 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

TP-Link’s brand new JetStream T1600G-28TS gigabit smart switch provides huge upgrade comparing with previous versions. New Web UI design features better operating experience. Small and medium sized businesses can get cost-effective networking solutions without sacrificing enhanced usability and strong performance because of the integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and Static Routing.

Abundant L2 and L2+ Features
T1600G-28TS supports a complete lineup of L2 features, including IGMP Snooping/ MLD Snooping, 802.1Q/MAC/ Protocol VLAN, STP/RSTP/MSTP, Link Aggregation Group(LAG), Port Isolation, Port Mirroring, and 802.3x Flow control function. IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch, while IGMP Throttling & Filtering restricts each subscriber on a certain level to prevent unauthorized multicast access. Besides, T1600G-28TS also supports L2+ features like static routing. It is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic to be more efficient.

IPv6 Support
T1600G-28TS supports comprehensive IPv6 features including IPv6 management, ACL, QoS and MLD Snooping, all of these features help to ensure a smooth migration to IPv6-based network without changing switches in the future.

Features
Gigabit Ethernet connections on all ports provide full speed of data transferring
L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3az
IEEE802.3z
IEEE 802.3ad
IEEE 802.3x
IEEE 802.1d
IEEE 802.1s,
IEEE 802.1w
IEEE 802.1q
IEEE 802.1p
IEEE 802.1x
Interface 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply 100~240VAC, 50/60Hz
Dimensions ( W x D x H ) Maximum: 13.1W (220V/50Hz)
Dimensions ( W x D x H ) 17.3 x 7.1 x 1.7 in.
(440 x 180 x 44 mm)
Mounting 19" 1U rack-mountable
Max Power Consumption 20.4W
Bandwidth/Backplane 56Gbps
Packet Forwarding Rate 41.7Mpps
MAC Address Table 8K
Jumbo Frame 9KB
QoS Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN
L2 and L2+ Features Static Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Access Control List L2~L4 package filtering
MAC ACL
IP ACL
Combined ACL
IPv6 ACL
Security AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
IPv6-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
Package Contents T1600G-28TS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Environment Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
