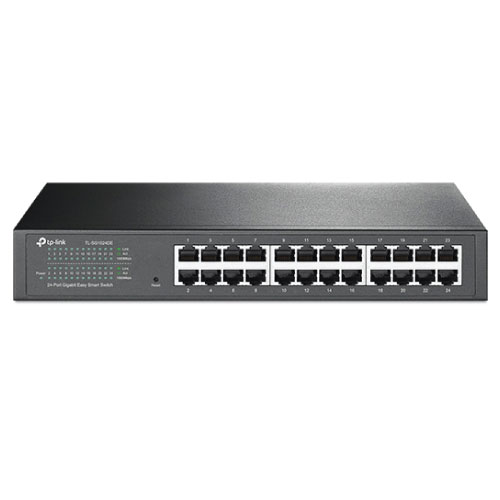

Tp-Link 24 Pt 10/1000 Smart Switch
Tp-Link 24 Pt 10/1000 Smart Switch
Item #
NS24ITP03
Brand
TP-Link
Model
TL-SG1024DE

Color
Black
Warranty
5 Year /1 Year OTC /4 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

The TL-SG1024DE 24-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1024DE offers Port-based/802.1p/DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1024DE can save power consumption, making it an eco-friendly solution for your business network.


Features
24 10/100/1000Mbps RJ45 ports
Provides network monitoring, traffic prioritization and VLAN features
Green technology reduces power consumption
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.1q
IEEE 802.1p
Interface 24 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Medias 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in.
(294 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 14.19W (220V/50Hz)
Max Heat Dissipation 48.39 BTU/h
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mbit
Jumbo Frame 10KB
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
Package Contents TL-SG1024DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
