TP-Link 11AX Gb E x1 wWfi Range Ext

TP-Link 11AX Gb E x1 wWfi Range Ext

Item #
NWAXTEX1
Brand
TP-Link
Model
RE505X

Color
White
Warranty
2 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description
RE505X New

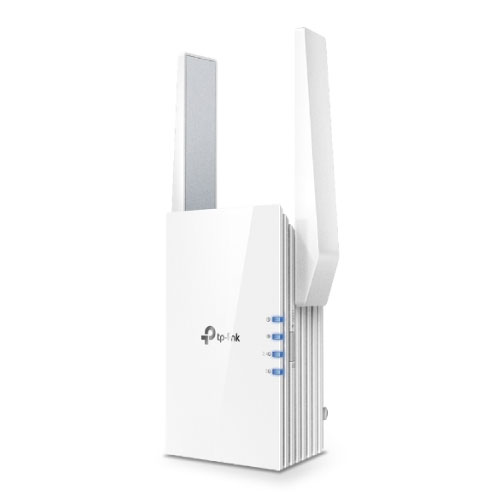

AX1500 Wi-Fi 6 Range Extender


Extend WiFi Coverage: Eliminate WiFi dead zones by expanding high-performance WiFi using specially designed high-gain antennas.
Wi-Fi 6 Speeds: Enjoy smoother and more reliable streaming, gaming, downloading, and more with dual-band WiFi speeds up to 1.5 Gbps.1 2
Connect More Devices to Your Network: Connect more devices that are out of range from your main router while eliminating poor performance.
Gigabit Ethernet Port: Experience wired speed and reliability anywhere in your home with the gigabit ethernet port.
OneMeshTM Technology: Create a mesh network using compatible routers, like Archer A7, and range extenders so you never switch networks or lose signal. 3
Set Up in Minutes: Easily set up and manage your WiFi in a few quick and easy steps using the intelligent signal indicator and TP-Link Tether app (Android, iOS).
Universal Compatibility: Compatible with all WiFi-enabled devices and routers or access points. It even supports new AX phones, laptops and other devices.4


Hardware Features
Ports 1 Gigabit Ethernet Port

Button WPS Button, Reset Button

Power Consumption 10W

Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm)

Antenna 2 External Antennas
Wireless Features
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency 2.4GHz and 5GHz

Signal Rate 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz

Reception Sensitivity 5GHz:

11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm

Transmit Power    CE: 2.4GHz =20dBm, 5GHz =30dBm
Wireless Functions    Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security    64/128-bit WEP, WPA/WPA-PSK2 encryptions
Others
Package Contents Wi-Fi Range Extender RE505X
Quick Installation Guide


If you can't find what you're looking for here, please contact your sales representative.
