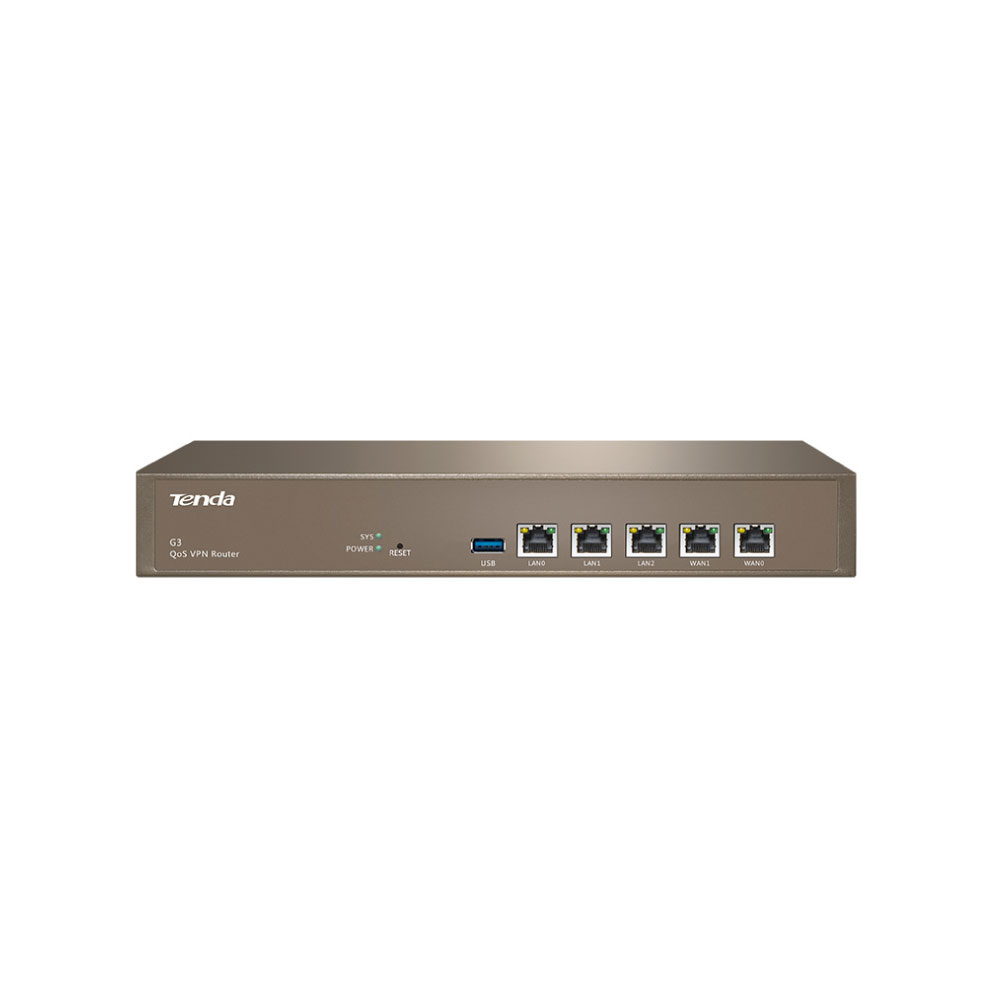

Tenda G3 equips with high performance CPU with maximum frequency up to 800MHz and 4 WAN ports which provides multiple functions of load balance, traffic control and user authentication. G3 can manage 100 access points and provide capacity for 200 concurrent network devices. Through convenient network deployment and convenient setting, G3 provides the best wireless coverage solutions for small businesses, restaurants , cafes and so on.
Main Features
Multi-WAN Ports.
Portal Authentication.
AP Management.
QoS Bandwidth Management .
PPTP/L2TP/IPSec VPN.
Multi-WAN Ports
Equipped with 3 bandwidth balancing modes based on session, IP and intelligent load balancing, and supports average bandwidth allocation and bandwidth expansion of 4 ports.
Portal Authentication
Smart authentication customize with internet access time setting and Ad push to promote brand or products.
AP Management
G3 can manage and monitor all the Tenda APs. The networking administrator can modify the description, SSID, channel, security for APs and monitor the APs and clients online status through G3.
QoS Bandwidth Management
Automatical bandwidth control with smart QoS which supports bandwidth allocating and QoS priority.
PPTP/L2TP/IPSec VPN
Use a PPTP/l2tp/IPSec VPN with multiple encryption to ensure data security and convenient Internet work for enterprise staff.
Hardware
|
Interface
|
1-4*GE WAN
4-1*GE LAN
1*USB
|
|
Button
|
1* Reset button
|
|
Power Supply
|
AC 100~240V 50/60Hz
|
|
Dimension(L*W*H)
|
294*178*44mm
|
Software |
| User Capacity |
120
|
|
Kernel
|
Linux
|
|
Internet Connection Type
|
PPPoE
Dynamic IP
Static IP
|
|
Multi WAN Load Balance
|
Based Conection Session
Based Conection Users
|
|
DHCP Server
|
DHCP Server
|
|
Bandwidth Control
|
30 Entries
Based Accounts
Based IP Range
|
|
Portal Authentication
|
200 authentication Accounts
Customize the Internet Access Time
Customize Advertise Picture
Customize Redirect Login Page
Online Users Statistics
|
|
AC Management
|
Maximum Manage 8APs
|
|
Static Routing
|
16 Entries
|
|
Port Forwarding
|
32 Entries
|
|
Remote Web access
|
Support
|
|
WAN Ping Prohibited
|
Support
|
|
DDNS Service
|
Dyndns/No-ip
|
|
Web Page Timeout
|
Support
|
|
PPTP Server
|
Maximum 32 Clients
|
|
PPTP Client
|
Support
|
|
L2TP Server
|
Maximum 32 Clients
|
|
L2TP Client
|
Support
|
|
IPSec Server
|
Maximum 32 Peer Tunnel
|
|
Diagostic
|
Ping and Traceroute
|
|
VPN Pass-through
|
PPTP/L2TP/IPSec
|
|
Management Tool
|
Date Time Settings
Reboot
Firmware Upgrade
Backup Configuration
Restore Configuration
Username Managerment
System Log
|
|
Package Contents
|
Wired Enterprise Router*1
Power Cord *1
Install Guide*1
|
|
Default Settings
|
IP Address: 192.168.0.252 or tendawifi.com
Login Username:admin
Login Password:admin
|
|
Operation Temperature
|
-10? ~ 70?
|
|
Humidity
|
Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
|
|
Certificates
|
CE/FCC/RoHS
|
