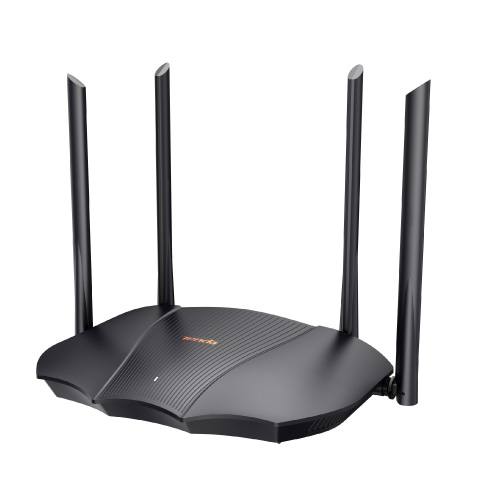

Tenda Ax3000 4 port Gb/4 Ant. RTR

Product Description

AX3000 for Ultra-Fast Transmission Speed
TX9 Pro is a Dual-band Wi-Fi 6 router that provides 160MHz bandwidth and 1024-QAM for ultra fast wireless connection. With a total networking speed of 2976Mbps — 574Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band.


Minimize Lag for a Better,Smart Products Experience
With the innovative combination of OFDMA + MU-MIMO, 802.11ax technology provides greater network capacity and efficiency in congested environments than Wi-Fi 5.
OFDMA divides each channel into small sub-channels, allowing signals from multiple appliances to be bundled together and transmitted simultaneously, reducing latency for a smoother Wi-Fi experience.

1.6GHz Dual-Core Processor Provides Faster
and More Stable Wi-Fi Experiences
Equipped with 1.6GHz high performance Dual-core processor, the operating capacity reaches up to 3000 DMIPS, and NPU processing speed reaches 2220 MHZ, which improves network load capacity, responds faster and more stable.

" Four Plus Four " Makes Full Wi-Fi Coverage
Four FEM Modules with the independent signal amplification work with four 6dBi external omnidirectional dual-band antennas for wider Wi-Fi coverage.

BSS Coloring Reduces Interference and Improves Efficiency
Supporting BSS coloring technology, TX9 Pro effectively alleviates co-frequency interference, improves spectrum utilization and communication efficiency.

IPv6 Supported
Compared with IPv4 protocol, IPv6 has a large number of IP addresses. Unordered Internet access through address translation can shorten the data transmission time between Internet devices and servers.

TWT Extends Battery Life of Connected Devices
TWT (Target Wake-up Time technology) can effectively reduce the power consumption of terminal equipment and greatly extend its battery life.

The Next-Gen Security Protocol WPA3
The TX9 Pro carries a new generation of Wi-Fi security standard WPA3, which increases the difficulty of algorithmic and network password cracking to prevent forced-attacks, violent cracking.

Remote Control Through the Tenda APP
Wi-Fi status can be controlled remotely through the Tenda APP, even while travelling, which facilitates the real-time monitoring of the home network.

Hardware
Standard&Protocol	IEEE802.3, IEEE802.3u,IEEE802.3ab
Ethernet Interface	1*10/100/1000Mbps WAN port  3*10/100/1000Mbps LAN ports
Antenna	4*6dBi external antennas
Button	1 x Reset Button
Power	Input:AC 100-240V~50/60Hz 0.6A Output:DC 12V1.5A
Dimension	272.44x162.85x43.71mm
LED Indicator	SYS*1
Wireless
Wireless Standard	IEEE 802.11ac/a/n/ax 5GHz IEEE 802.11b/g/n/ax 2.4GHz
Data Rate	5GHz: Up to 2402Mbps 2.4GHz: Up to 574Mbps
Frequency	Simultaneous dual band 2.4
Transmission Power	CE: <20dBm(2.4G) <23dBm(5G)
Basic Features	2.4~2.4835GHz 5.15~5.25GHz 5.47~5.725GHz (for EU countries) 5.725~5.85GHz
Transmission Power	SSID Broadcast: Enable/Disable Transmission Power: high, medium, low Beamforming MU-MIMO
Wireless Security	WPA-PSK,WPA2-PSK, WPA/WPA2-PSK WPA3-SAE/WPA2-PSK Wireless Security: Enable/Disable  WPS(WiFi Protected Set-up) fast encryption
Software
Operating Mode	Wireless Router Mode
Internet Connection Type	PPPoE, Dynamic IP, Static IP
DHCP Server	DHCP Server DHCP Client List DHCP Reservation
Virtual Server	Port Forwarding DMZ Host UPnP
Security	Client Filter Parental Control(support black list and white list) Remote Web Management
Firewall	Forbid UDP flood attack Forbid TCP flood attack Forbid ICMP attack Forbid WAN PING from internet
VPN	PPTP server PPTP client L2TP client
DNS	no-ip,Oray, 88ip,DynDNS
Special Features	Smart Traffic Prioritisation PPPoE Username/password Clone Smart WiFi Schedule Smart LED on/off Tenda Cloud Tenda App
Others	Bandwidth Control Guest Network IPTV VLAN MAC Clone Static Routing System Log Backup
Others
Operation Temperature	0 ~ 40°
Storage Temperature	-40 ~ 70°
Operating Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
Default Settings	Default Access: tendawifi.com
Certification	CE/FCC/RoHS EIRP Power (Max) 2.400-2.4835GHz:19.95dBm (EIRP) 5.150-5.250GHz:22.98dBm (EIRP)
Package Contents	Wireles Router*1 Power Adapter *1 Install Guide*1 Ethernet Cable*1
