Faster, More Stable and More Connection

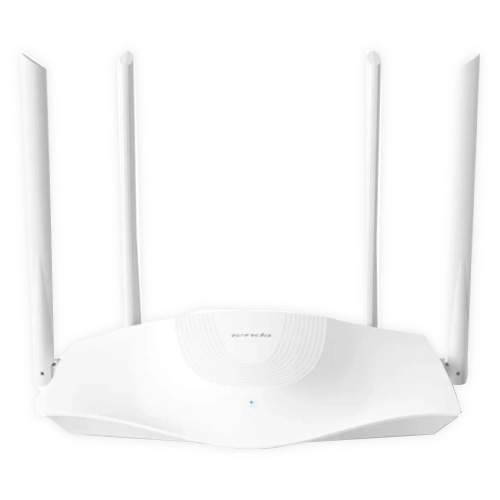

AX1800 Dual Band Gigabit Wi-Fi 6 Router
Wi-Fi 6 for Ultra-Fast Transmission Speed
TX3 adopts MU-MIMO + OFDMA to significantly improve network performance and efficiency, enabling it to support more client devices at the same time, wipe out latency, enhance multiplayer online games, and enjoy 4K videos more smoothly.
Built-in Signal Enhancement Module
It adopts 5GHz dedicated powerful WLAN full-featured front-end module, equipped with integrated signal amplifier. The concentrated signal makes sure stronger and more stable Multi-story home Wi-Fi coverage. You can enjoy best signal in any corners.
1.5GHz Quad Core Processor
Provides Faster and More Stable Wi-Fi
With the 1.5GHz high-performance quad core processor,the network load capacity is comprehensively improved.Instant fast response making the operation more stable.
BSS Coloring Reduces Interference and Improves Efficiency
Supporting BSS coloring technology,TX3 effectively alleviates co-frequency interference, improves spectrum utilization and communication efficiency.
TWT Extends Battery Life of Connected Devices
TWT (Target Wake-up Time technology) can effectively reduce the power consumption of terminal equipment and greatly extend its battery life.
Enjoy Safer Surfing with The Next-Gen Security Protocol WPA3
The TX3 carries a new generation of WiFi security standard WPA3, which increases the difficulty of algorithmic and network password cracking, can prevent forced- attacks,violent cracking, and protect user privacy in open Wi-Fi networks.
Remote Control Through The Tenda APP
Wi-Fi status can be controlled remotely through the Tenda APP, even while travelling, which facilitates the real-time monitoring of routers.
Live The Present Greet The Future
The TX3 is designed to be compatible with Smartphones & devices that support Wi-Fi 6 standard in use. Enjoy the latest generation Wi-Fi standard with the TX3 from Tenda.
Hardware
|
Standard&Protocol
|
IEEE802.3, IEEE802.3u,IEEE802.3ab
|
|
Ethernet Interface
|
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
|
|
Antenna
|
4*6dBi external antennas
|
|
Button
|
1* WPS,1*Reset button
|
|
Power
|
Input:AC 100-240V~50/60Hz 0.4A
Output:DC 12V 1A
|
|
Dimension
|
9.35*6.03*1.77 in (237.6*153.1*45mm)
|
|
LED Indicator
|
SYS*1
|
Wireless
|
Wireless Standard
|
IEEE 802.11ac/a/n/ax 5GHz
IEEE 802.11b/g/n/ax 2.4GHz
|
|
Data Rate
|
5GHz: Up to 1201Mbps
2.4GHz: Up to 574Mbps
|
|
Frequency
|
Simultaneous dual band 2.4 & 5GHz
|
|
Transmission Power
|
CE:
<20dBm(2.4G)
<23dBm(5G)
|
|
Basic Features
|
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
|
|
Wireless Security
|
WPA-PSK,WPA2-PSK, WPA/WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
|
|
|
|
|
|
|
Software
|
Operating Mode
|
Wireless Router Mode
Universal Repeater Mode
WISP Mode
|
|
Internet Connection Type
|
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia),Unifi,Maxis,Maxis-special,Manual
|
|
DHCP Server
|
DHCP Server
DHCP Client List
DHCP Reservation
|
|
Virtual Server
|
Port Forwarding
DMZ Host
UPnP
|
|
Security
|
Client Filter
Parental Control(support black list and white list)
Remote Web Management
|
|
Firewall
|
PPTP server
PPTP client
L2TP client
|
|
VPN
|
PPTP server
PPTP client
L2TP client
|
|
DNS
|
no-ip,Oray, 88ip,DynDNS
|
|
Special Features
|
Smart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart LED on/off
Tenda Cloud
Tenda App
Alexa
|
|
Others
|
Bandwidth Control
Guest Network
IPTV
VLAN
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6
|
Others
|
Operation Temperature
|
0 ~ 40 ?
|
|
Storage Temperature
|
-40 ~ 70 ?
|
|
Operating Humidity
|
10%~90% RH non-condensing
|
|
Storage Humidity
|
5%~90% RH non-condensing
|
|
Default Settings
|
Default Access: tendawifi.com
|
|
Certification
|
CE/FCC/RoHS
EIRP Power (Max)
2.400-2.4835GHz:19.95dBm (EIRP)
5.150-5.250GHz:22.98dBm (EIRP)
|
|
Package Contents
|
Wireles Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
|
