A15 AC750 Dual Band WiFi Repeate
Longer-range WiFi coverage and auto switchover between dual band

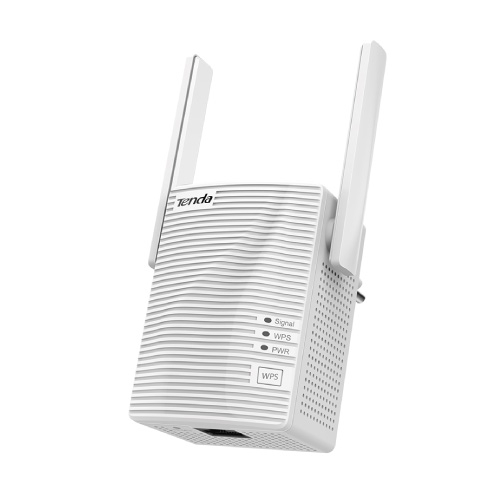

AC750 Dual Band WiFi Repeater A15
Swift switchover between 2.4 GHz and 5 GHz bands for stable internet connection with least interruption
With 2 external high-quality omni-directional antennas, A15 can expand 2.4 GHz and 5 GHz WiFi networks simultaneously, supporting automatic switchover of mobile terminals between 2.4 GHz and 5 GHz bands.
A15 offers a 300 Mbps 2.4 GHz band that maximizes mobile device connectivity, and a much faster 433 Mbps 5 GHz band that minimizes interference.
Excellent performance within a compact and exquisite designCompact exterior provides high-quality and long-range WiFi coverage. Working with a dual band WiFi router, A15 allows you to enjoy a smarter life with faster and more stable internet connection
Two modes in one for a variety of scenariosYou can switch between Repeater mode and AP mode as needed.
Repeater mode: A15 can expand WiFi coverage by bridging the upstream router's WiFi signal, and allows wired devices connected to its LAN port to access the internet;
AP mode: connect an Ethernet cable with internet connectivity to the LAN port of A15 to turn it into an AP.
Intuitive signal LED to indicate the optimal repeater locationThe Signal LED tells the best repeater location.
Blue: good signal strength
Red: poor signal strength
Off: no signal
A15 supports setup using WiFi devices, such as mobile phone and tablet. It only takes 3 steps to connect your repeater to the internet.
Compatible with any WiFi routerA15 can work well with any WiFi router and WiFi DSL modem router available on the market, outshining most of repeaters.
More functionsHide SSID, WPS, and WPA/WPA2 mixed encryption mode
Hardware
|
Interfaces
|
1*10/100Mbps RJ45
|
|
Antenna Type
|
2 * External 2dBi dual-band omni-directional antenna
|
|
Button
|
1 * WPS Button 1 * Reset Button
|
|
LED Indicator
|
1 * Signal LED 1 * WPS LED 1 * Power LED
|
|
Power Supply
|
9V0.8A, built-in
|
|
Power Consumption |
5.2W (max power consumption) |
Wireless |
Wireless Standard
|
IEEE802.11b,IEEE 802.11g, IEEE 802.11n, IEEE 802.11a,IEEE 802.11ac
|
|
Frequency
|
5 GHz(11ac) 2.4 GHz
|
|
Data Rate
|
5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps
|
|
RSSI
|
2.4 GHz 11b-1M:-97dBm 11g-54M:-76dBm 11n-20M-MCS7:-74dBm 11n-40M-MCS7:-72dBm 5 GHz: 11a-6M:-95dBm 11n-20M-MCS7:-74dBm 11n-40M-MCS7:-72dBm 11ac-80M-MCS9:-63dBm
|
|
Transmission Power
|
<20dBm
|
|
Wireless Modes
|
Repeater Mode,Access Point Mode
|
|
Wireless Security
|
Default encryption mode: Mix WPA-PSK/WPA2-PSK WPA algorithm: TKIP
|
Others
|
Certification
|
CE, FCC?RoHS Plug Type US?EU?UK?BR?AU?AR
|
|
Package Contents
|
1 * AC750 Dual Band WiFi Repeater 1 * Quick Installation Guide
|
|
System Tool
|
Firmware upgrade, Restore factory settings, Login password, and Reboot
|
|
Environment
|
Operating Temperature: 0?~40? Storage Temperature: -40?~70? Operating Humidity: (10~90)% RH, non-condensing
|
|
