Hardware
|
Standard&Protocol
|
IEEE802.11a/b/g/n/ac
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
|
|
| Ethernet Interface |
3 x 10/100/1000Mbps RJ45 ports per node
|
|
Antenna
|
4 x Internal antenna
|
|
Button
|
1 x Reset Button
|
|
| Power |
Input: 100-240V—50/60Hz, 0.6A
Output: 12V1.5A
|
|
Dimension
|
100 x 100 x 100mm (3.94 x 3.94 x 3.94in)
|
|
| LED Indicator |
1 x Tri-color LED
Indicator(Green,Yellow,Red)
|
Wireless
|
| Wireless Standard |
IEEE802.11a/b/g/n/ac (WiFi 5 wave 2)
|
|
Wireless roaming
|
Comply with IEEE802.11k/v/r
|
|
| Mesh network Standard |
IEEE802.11s
|
|
| Rate |
2.4GHz: 300Mbps
5GHz-1: 867Mbps
5GHz-2: 867Mbps
|
|
| Frequency |
2.4~2.4835GHz
5.15~5.25GHz
5.47~5.725GHz (for EU countries)
5.725~5.85GHz
|
|
| Transmission Power |
CE:
<20dBm(2.4G)
<23dBm(5G)
|
|
| Basic Features |
SSID Broadcast
Beam Forming
MU-MIMO
AP Steering
Band Steering
|
|
| Wireless Security |
WPA-PSK/WPA2-PSK(default)
|
Software
|
| Operating Mode |
Router Mode,Bridge Mode
|
|
| Internet Connection Type |
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
|
|
| DHCP Server |
DHCP Server, DHCP Client List
|
|
| Virtual Server |
Port Forwarding
DMZ Host
UPnP
|
|
| Parental Control |
Client Filter
URL Filter
|
|
| Firewall |
Forbid TCP/UDP flood attack
|
|
| VPN |
PPTP/L2TP/IPsec pass through
|
|
| DNS |
Support manually setting DNS server
|
|
| Special Features |
Dedicated Backhaul
Turbo Backhaul Mode
Fast Roaming
Smart QoS (Gaming, Video & Audio, Download)
|
|
| Others |
Auto-sensing internet connection
Support App management and Remote management
Guest Network
Firmware upgrade online
|
|
| Others |
Operation Temperature
0 ~ 40 ?
Storage Temperature
-40 ~ 70 ?
Operating Humidity
10%~90% RH non-condensing
Storage Humidity
5%~90% RH non-condensing
APP installation
Available in iOS 8.0 or later, Android 4.0 or later
Certification
CE, FCC, RoHS

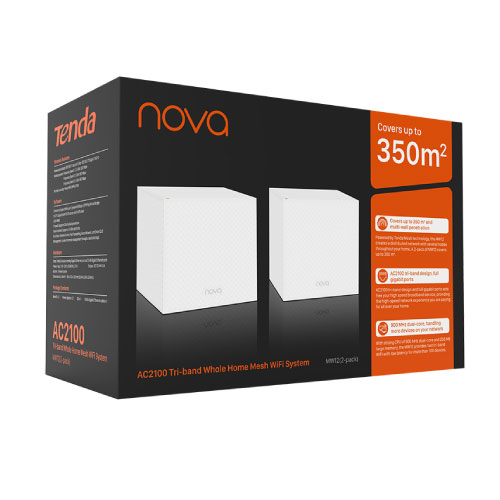

Package Contents
Mesh12 x 2, Power adapter x 2, QIG x 1, RJ45 Gigabit Ethernet cable x 1
|
