Tenda AC2100 4 port Gb/ 7 Ant. RTR

Product Description

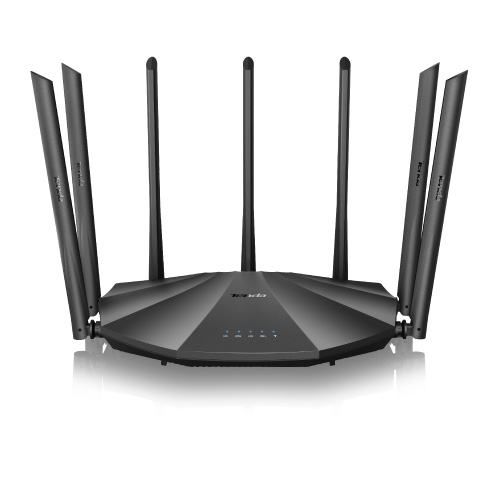

AC23   AC2100 Dual Band Gigabit WiFi Router
AC2100

Dual Band Gigabit WiFi Router
AC2100 for Advanced WiFi Speed
AC23 is a dual-band gigabit wireless router, adopted with 802.11 ac wave2 techonology and provides speed up to 2033 Mbps to get the most out of your gigabit fiber internet.

4x4 MU-MIMO for 5GHz Band
Powered by 4X4 MU-MIMO techonology of 5 GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO techonology.

Built-in Signal Amplifier for Main Chip
Built-in signal amplifier used both on 2.4GHz and 5GHz bands of AC23 to enhance the penetration capability and expand the WiFi coverage.

7*6dBi External Antennas for Better WiFi Signal
With 7*6 dBi external antennas and four data streams of 5Ghz band, the AC23 can provide optimized WiFi coverage and better 5GHz WiFi signal.

Support Fiber Internet Up to 1000Mbps
Equipped with full gigabit ports, it supports up to 1000Mbps bandwith access.

Dual-core Design Bring a More Stable Operation
The 28nm 1GHz CPU equipped with 500MHz co-processor, dual-core design along with ethernet process brings a faster processing speed and provides optimized operation.

Support IPv6 Protocol
AC23 supports IPv6, it can reduce the data transmission time and minimize the lag, provide a better gaming experience.

Hardware
Standard&Protocol	IEEE802.3, IEEE802.3u,IEEE802.3ab
Interfaces	1*10/100/1000Mbps WAN port 3*10/100/1000Mbps LAN ports
Antenna	7*6dBi external antennas
Button	1* WPS/Reset button
Power	Input:AC 100-240V~50/60Hz 0.6A Output:DC 12V1.5A
Dimension	9.41 * 5.68 * 1.59 in(238.9*144.3*40.3mm)
LED Indicator	Sys*1,WAN*1, LAN*1,WiFi/WPS*1
Wireless
Wireless Standard	IEEE 802.11ac wave2/a/n 5GHz IEEE 802.11b/g/n 2.4GHz
Data Rate	5GHz: Up to 1733Mbps 2.4GHz: Up to 300Mbps
Frequency	Simultaneous dual band 2.4 & 5GHz
Transmission Power	CE: <20dBm(2.4G) <23dBm(5G)
Basic Features	SSID Broadcast: Enable/Disable Transmission Power: high, medium, low Beamforming MU-MIMO
Wireless Security	WPA-PSK/WPA2-PSK, WPA/WPA2  Wireless Security: Enable/Disable  WPS(WiFi Protected Set-up) fast encryption
Software
Internet Connection Type	PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode	Wireless Router Mode Universal Repeater Mode WISP Mode
DHCP Server	DHCP Server DHCP Client List DHCP Reservation
Virtual Server	Port Forwarding DMZ Host UPnP
Security	Client Filter Parental Control(support black list and white list) Remote Web Management
Firewall	Forbid UDP flood attack Forbid TCP flood attack Forbid ICMP attack Forbid WAN PING from internet
DDNS	no-ip,DynDNS,Oray, 88ip
VPN	IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client
Special Features	Smart Traffic Prioritisation PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off Tenda Cloud Tenda App
Others	Bandwidth Control Guest Network IPTV MAC Clone Static Routing System Log Backup & Restore configurations Firmware upgrade online Firmware upgradeable via browser Supports IPv6
Others
Temperature	Operating Temperature: 0 ~ 40° Storage Temperature: -40 ~ 70°
Humidity	Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing.
Default Settings	Default Access: tendawifi.com
Certification	CE/FCC/RoHS
EIRP Power (Max)	2.400-2.4835GHz:19.86dBm (EIRP) 5.150-5.250GHz:22.96dBm (EIRP)
Package Contents	Package Contents Wireles Router*1 Power Adapter *1 Install Guide*1 Ethernet Cable*1
