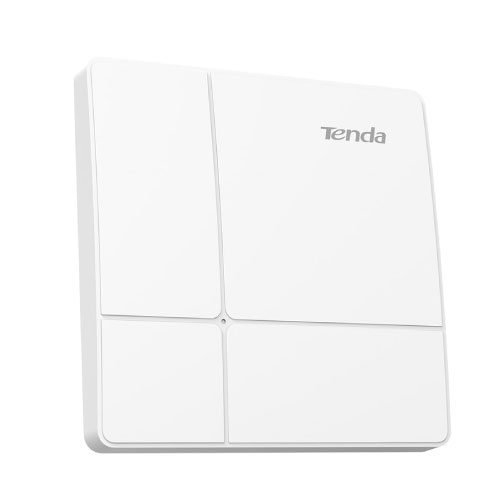

i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.
New Gigabit network solution
11AC Wave2 Gigabit Access Point Series
Gigabit internet connections for ultra-fast experience
Up to 1317 Mbps dual-band data rate, and the 1000 Mbps Ethernet port let you enjoy ultra-fast internet connections.
IEEE 802.11ac Wave 2 and MU-MIMO
A single can communicate with multiple wireless clients at one time, letting you enjoy higher throughput and better experience.
Dual-band for more connected clients
Allows clients that support either 2.4 GHz or 5 GHz band , or both to connect to it at the same time, tripling the quantity of connected clients of traditional single-band AP.
Built-in omni-directional antennas
The optimized antennas make it outstanding in radiating wireless signals and broadening wireless coverage.
Resource allocation fairness for reliable wireless network
Featuring air interface scheduling, it could evenly allocate air interface resources, thus improving your wireless network speed as a whole by preventing clients with low data rate from consuming too much network resources. What's more, it also allows you to customize the RSSI threshold value, so that you can disconnect clients that do not reach the RSSI.
Multiple interference-mitigation technologies
Powered by multiple interference-mitigation technologies, i automatically chooses the best channel and adjusts the transmit power to a reasonable value, significantly optimizing wireless signals by mitigating co-channel interference and electro magnetic interference (EMI).
VLAN tagging for SSID
You are allowed to set multiple SSIDs, and enabled to add VLAN tags for SSIDs with the IEEE 802.11q VLAN-compliant feature so as to protect the security of your network.
Standard PoE sourcing and DC power supply for easy deployment
You can use an IEEE 802.3at-compliant PoE sourcing equipment, or a DC power adapter to power on it.
Centralized management
You are allowed to configure and manage multiple it in a centralized manner through all Tenda access controllers (AC) and enterprise routers that include AC functionality, and enjoy simple management, configuration and monitoring of all access points.
Hardware
|
Dimension
|
178 × 178 × 38mm
|
|
Ethernet Interface
|
1 x 10/100/1000 Base TX
|
|
Antenna
|
2.4GHz: 2 x 4dBi
5GHz: 2 x 4dBi
|
|
Button
|
1 x RESET
|
|
LED Indicator
|
1 x SYS
|
|
Maximum Power Consumption
|
<11.5W
|
|
Power supply standard
|
802.3af/at and DC: 12V 1A
|
Wireless
|
Frequency Band
|
2.4GHz
|
|
Data Rate
|
2.4GHz: 300Mbps
5GHz: 867Mbps
|
|
Wireless Standard
|
802.11a/b/g/n/ac(wave2)
|
|
| Max Transmit Power |
2.4GHz: 23dBm
5GHz: 23dBm
|
|
Sensitivity
|
802.11b :-93 dBm
2.4 GHz 802.11n (MCS7):-73dBm
5 GHz 802.11a :-93 dBm
5 GHz 802.11n (MCS7) :-74 dBm
|
Software
|
MU-MIMO
|
Support
|
|
Operating Mode
|
AP/Client AP
|
|
Hide SSID
|
Support
|
|
Max. No. of SSID
|
2.4GHz: 8
5GHz: 4
|
|
Max. connected clients
|
256
|
|
WEP
|
Support
|
|
WPA-PSK
|
Support
|
|
WPA2-PSK
|
Support
|
|
WPA
|
Support
|
|
WPA2
|
Support
|
|
Access control
|
Support
|
|
Adjustable power transmit
|
Support
|
|
AP isolation
|
Support
|
|
Connected clients control
|
Support
|
|
RSSI Threshold
|
Support
|
|
WMM
|
Support
|
|
VLAN tagging for SSID
|
Support
|
|
Diagnostics
|
Support
|
|
Schedule Reboot / Reboot at specified interval
|
Support
|
|
Backup configuration
|
Support
|
|
Restore configuration
|
Support |
|
Support
|
Centralized Management - System Logs - Firmware upgrade - Reset Button -
|
|
Others
|
Default login IP
192.168.0.254
Default Login Username
admin
Default Login Password
admin
|
|
Operation Temperature
|
-10? ~ 40?
|
