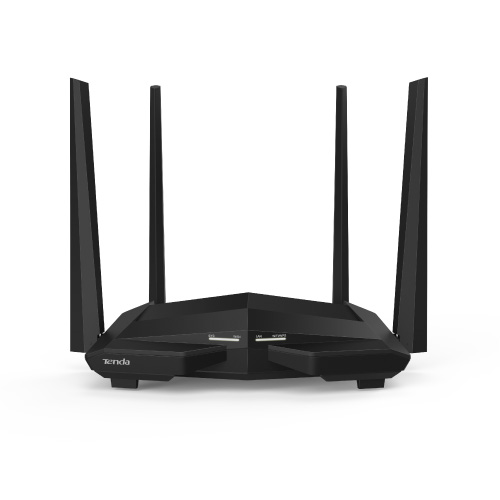

AC10 AC1200 Smart Dual-Band Gigabit WiFi Router
Gigabit Ports/4*5dBi Omnidirectional Antennas/2.4G and 5G Wireless Enhanced Module/MU-MIMO/Beamforming+/APP Management
With 1 GHz CPU made with 28 nm process, AC10 manifests excellent capacity on data processing and energy conservation.
It works well with optical fiber with bandwidth ranging from 50 M, 100 M, 200 M to even 1000 M, allowing you to enjoy smooth HD videos and games.
All Gigabit ports for full play of your ever-increasing bandwidth of optical fiber
AC10 is a high-performance WiFi router designed with full Gigabit WAN and LAN ports,removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber.
Strong dual band WiFi signal for multi-wall penetration
With the new generation 802.11ac wave 2.0 standard, AC10 offers a concurrent dual band data rate of as high as 1167 Mbps. Wireless signal boosting technology both on 2.4 GHz and 5 GHz bands broadens your WiFi coverage, and Beamforming+ technology makes WiFi signal of AC10 outstanding behind multiple walls.
Innovative MU-MIMO technology
With innovative MU-MIMO, the breakthrough of the new generation 802.11 ac standard, AC10 can communicate with multiple devices at a time, shortening latency and improving quantities of connected devices.
Four clean-cut antennas for stronger WiFi signal and wider WiFi coverage
AC10 boasts four 5 dBi omni-directional antennas. With leading accordion wire design, multiple oscillators and scientific bevel, AC10 balances the signal field and gain, providing you with stronger WiFi signals.
Configuration-free for quick setup
What if you forget your PPPoE user name or password, or you cannot login to the web UI of the router for setup? AC10 can eliminate your concern by migrating your PPPoE user name and password from your original router.
Tenda WiFi app for your smart life
Tenda WiFi app allows you to upgrade online, manage your network and devices remotely and get a real-time understanding of usage of your router, making life simple and easy.
Hardware
|
Standard&Protocol
|
IEEE 802.3, IEEE 802.3u
|
|
Interfaces
|
3*GE LAN Ports
1*GE WAN Port
|
|
Antenna
|
4*5dBi External Dual Band Antennas
|
|
Button
|
1*WiFi On/Off button
1*Reset/WPS button
|
|
Power
|
Power Input: 100-240V—50/60Hz
Power Output: DC 12V==2A
|
|
Dimension
|
Package Box: 390*198*70mm(L*W*H)
Device: 220*141.5*49mm(L*W*H)
|
|
LED Indicator
|
1*WAN 1*LAN 1*Wi-Fi/WPS 1*SYS
|
Wireless
|
Wireless Standard
|
IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
|
|
Data Rate
|
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
|
|
Frequency
|
Simultaneous dual band 2.4 & 5GHz
|
|
Transmission Power
|
CE:
<20dBm (2.4G)
<23dBm (5G)
FCC:<30dBm
|
|
Basic Features
|
MU-MIMO
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment
|
|
Wireless Security
|
WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption
|
Software
|
Internet Connection Type
|
Dynamic IP/Static IP/PPPoE
Connection Type Auto Detection
Broadband Account and Password Migration
|
|
Operating Mode
|
Router/AP/Universal Repeater/WISP
|
|
DHCP Server
|
DHCP Server and Client
DHCP Client List
DHCP Address Reservation
|
|
Virtual Server
|
UPnP
DMZ Host
Port Forwarding
|
|
Security
|
Local Management
Remote Management
Tenda APP
|
|
Firewall
|
Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
|
|
DDNS
|
DynDns, NO-IP, Oray.com, 3322.org, 88ip
|
|
VPN
|
PPTP Client
PPTP Server
L2TP Client
|
|
Special Features
|
Smart Wi-Fi Schedule
Smart Power Saving
Smart LED On/Off
|
|
Others
|
Bandwidth Control
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online
|
Others
|
Temperature
|
Operating Temperature: 0 ~ 40°
Storage Temperature: -40 ~ 70°
|
|
Humidity
|
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
|
|
Default Settings
|
Default Access: tendawifi.com
|
|
Certification
|
CE, FCC, RoHS, BSMI, NCC, EAC, IC
|
|
EIRP Power (Max)
|
EIRP Power (Max) |
|
Package Contents
|
AC1200 Smart Dual-Band Gigabit WiFi Router
Power Supply
Ethernet Cable
Quick Installation Guide
|
