Tenda 8 port Gb Desktop/Wall Mtl Sw 6Kv

Product Description

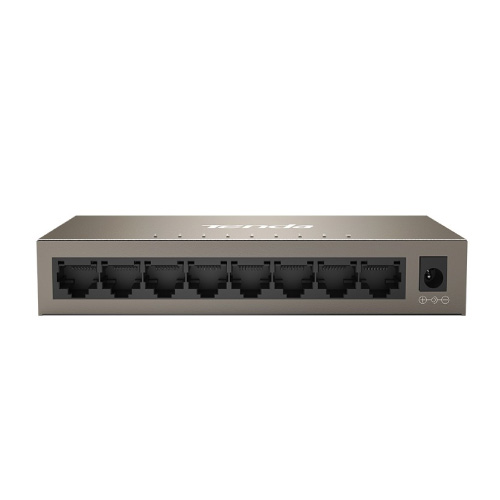

TEG1008M   8-Port Gigabit Desktop Switch
Dedicated for Surveillance and SMB 8-Port Gigabit Desktop Switch

Gigabit Speed
8 gigabit ports ensure the speed of the transmission of large files and improve transmission efficiency.

Support 9-12V DC Input
9-12V DC input design,support centralized power supply and monitor power supply.

Wallmount & Plug-n-play
support desktop and wallmount,plug-n-play,easy to use.

Metal Shell , Stable Operation
Full-metal & larger shell ensure effective cooling.

Hardware
Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator	1* Power, 8* Link/Act
Interfaces	8*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media	Recommended: CAT5/5e UTP or better
Fan quantity	N/A
Dimension	140.0mm×66.5mm×25.3 mm
Material	Metal
Level of protection	ESD: Air discharge: ±8kV Contact discharge: ±6kV
Forwarding mode	Store-and-forward
Switch capacity	16Gbps
Packet forwarding rate	12.00Mpps
Buffer	192KB
MAC address table	4K
Jombo frame	N/A
Power	Input: AC:190-240V 50/60Hz DC:9-12V
Power consumption	Max:<5W
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating temperature: 0°C - 45? Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing
Certification	CE, FCC, RoHS
Software
Protocols	CDMA/CD
MAC address learning	Auto-Learning and Auto-Aging
Funtions	plug-and-play
