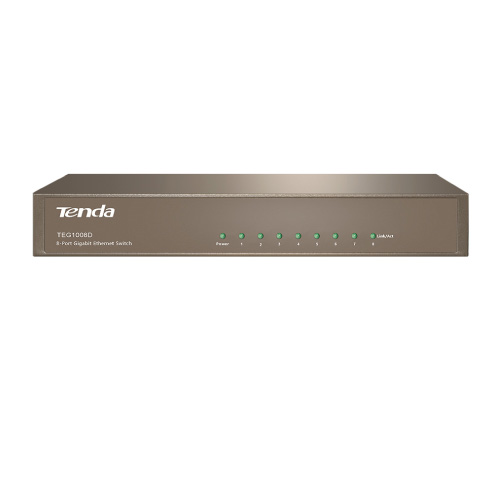

TEG1008D 8-Port Gigabit Desktop Switch
loop prevention, lightning-proof, blazing-fast speed
TEG1008DV1.0
8-Port Gigabit Desktop Switch
What It Does
TEG1008D is an unmanaged gigabit switch with 8 10/100/1000Mbps auto-negotiation RJ45 ports. Wire-speed forwarding rate of each port is up to 1000Mbps. TEG1008D supports 9k Jumbo Frame to increase the forwarding rate of large files in order to boost network performance . Lightning proof level is up to 4KV to ensure the stability and safety when you surf the internet. With bulit -in latest Broadcom chip , fanless and greenlumi design , TEG1008D is the ideal choice for small & medium enterprises,schools , small offices to upgrade gigabit network.
Main Features
>> Compliant with IEEE802.3, IEEE802.3u , IEEE802.3x,IEEE802.3ab Ethernet standard.
>> Provides 8 10/100/1000Mbps auto-negotiation RJ45 Ports.
>> Plug and play without configuration.
>> Provides up to 16Gbps back panel bandwidth and supports non-blocking wire-speed forwarding.
>> Provides LEDs to easily monitor link speed , activity and find problems in time.
>> Supports IEEE802.3x full duplex flow control and half duplex backpressure flow control.
>> Supports loop detection and loop prevention.
>> Supports up to 4KV lightning-proof for each port.
>> Support desk & wall-mounting installation.
>> Full-metal & larger shell ensure effective cooling.
Hardware
|
Network standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
|
|
LED Indicator
|
1* Power, 8* Link/Act
|
|
Interfaces
|
8*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
|
|
Transmission media
|
Recommended: CAT5/5e UTP or better
|
|
Fan quantity
|
N/A
|
|
Dimension
|
187.0mm×107.0mm×33.0mm
|
|
Material
|
Metal
|
|
Level of protection
|
Lightning protection for ports: N/A Lightning protection for power: N/A ESD: Air discharge: ±8kV Contact discharge: ±6kV
|
|
Forwarding mode
|
Store-and-forward
|
|
Switch capacity
|
16Gbps
|
|
Packet forwarding rate
|
12.00Mpps
|
|
Buffer
|
192KB
|
|
MAC address table
|
4K
|
|
Jombo frame
|
N/A
|
|
Power
|
Input: 100-240V AC 50/60Hz Output: 9.0V 1.0A ( External Power Adapter )
|
|
Power consumption
|
Max:<4W
|
|
Mounting
|
Desktop mounting: support Wall mounting: support Rack mounting:non-support
|
|
Environment
|
Operating temperature: 0°C - 45? Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing
|
|
Certification
|
CE, FCC, RoHS
|
Software
|
Protocols
|
CDMA/CD
|
|
MAC address learning
|
Auto-Learning and Auto-Aging
|
|
Funtions
|
plug-and-play
|
