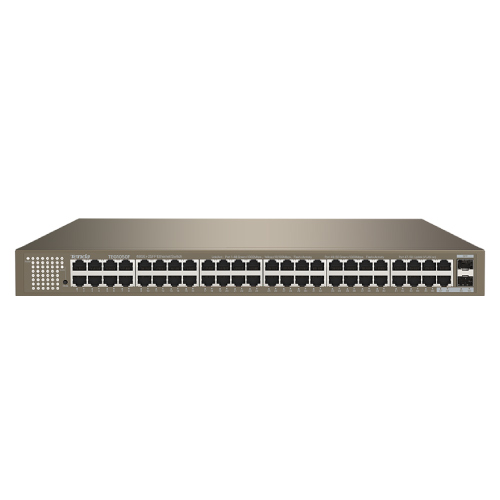

TEG1050F 48GE+2SFP Ethernet Switch
Developed by Tenda, TEG1050F is a Gigabit unmanaged Ethernet switch designed for establishing wired networks of high density and high speed in such scenarios as enterprises, parks, schools, and internet cafes, providing a simple, easy, cost-effective, and rapid internet access solution for video surveillance and SMBs' networking. With 48 10/100/1000 Mbps RJ45 ports, and 2 independent Gigabit SFP slots that can be paired with Tenda's SFP modules, this switch can be used to deploy a long-distance network up to 20 km. Its full-duplex transmission rate can reach 2000 Mbps, ensuring the timely transmission of large files and smoothness of videos. Its one-key VLAN function can isolate broadcast storms. Its integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports, ensuring the stability and reliability of the switch. The switch supports desktop mounting, rack mounting and wall mounting, and features a 1U 19-inch standard rack-mount shell design and plug & play function. With these advantages, it is an ideal choice for deploying a cost-effective and high-speed network.
Better Choice For High-Density & High-Speed Networking High-density Gigabit Ports
Gigabit SFP Uplink Slots
12 Mb Large Buffer
Dual 6 kV Lightning Protection
One-key VLAN
Ease of Use
No need for cascading with sufficient ports
Feature wire-speed forwarding for efficient communication
It provides 48 10/100/1000M auto-negotiation RJ45 ports and 2 1000M independent SFP slots, its full-duplex transmission rate can reach 2000 Mbps.
Compared with the traditional connection method of cascading two 24-port Gigabit switches, its high-density ports can easily solve the problems of large space occupation and high failure rate encountered in the project.
When multi ports synchronous forwarding, it can avoid network congestion caused by the uplink bandwidth bottleneck of two 24-port Gigabit cascading. All ports realize the wire-speed forwarding, and easily compatible with all office scenarios.
One-key VLAN, Enhance The Network Security
Under the VLAN mode, ports 1 to 46 cannot communicate with each other,
but can communicate with uplink ports 47 to 50, isolating broadcast storms and enhancing network security.
Dual 6kV Lightning Protection
This switch provides 6 kV lightning protection for both Ethernet ports and the power supply,
and supports over-temperature, over-voltage and surge current protection.
TEG1050F
12 Mb Large Buffer
With 12 Mb large buffer, the switch can meet the needs of such network applications with burst traffic as search engine, IPTV, and P2P downloads, ensuring no packet loss, timely transmission of large files, and smoothness of videos.
Hardware
|
Network standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
|
|
| LED indicators |
1* Power,50* Link/Act,1*VLAN
|
|
Interfaces
|
48*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
2*1000 Base-X SFP ports (Independent)
|
|
Transmission media
|
Recommended: CAT5/5e UTP or better
|
|
Fan quantity
|
N/A
|
|
Dimensions(L*W*H)
|
440.0mmx240.0mmx44.0mm
|
|
Material
|
Metal
|
|
Level of protection
|
Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
|
|
Forwarding mode
|
Store-and-forward
|
|
Switch capacity
|
100Gbps
|
|
Packet forwarding rate
|
74.4Mpps
|
|
Buffer
|
12Mb
|
|
MAC address table
|
16K
|
|
Jombo frame
|
12K
|
|
Power
|
Input: 100 - 240V AC 50/60Hz
Output: 12V 4A
|
|
Power consumption
|
Max:<48W
|
|
Mounting
|
Desktop mounting: support
Wall mounting: support
Rack mounting : support
|
|
Environment
|
Operating temperature: 0°C - 45?
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
|
|
Certificates
|
CE, FCC, RoHS
|
Software
|
Protocol
|
CDMA/CD
|
|
MAC address learning
|
Auto-Learning and Auto-Aging
|
|
Function
|
One-key VLAN (In this mode, ports 1 to 46 cannot communicate with each other, but can communicate with ports 47 to 50.)
|
