Tenda 24 Port L3 POE 370W + 4 SFP 6KV

Tenda 24 Port L3 POE 370W + 4 SFP 6KV

Item #
NS24JTA01
Brand
TENDA
Model
TEG5328p-24-410w

Color
Black
Warranty
3 Year / 30 Day OTC
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description

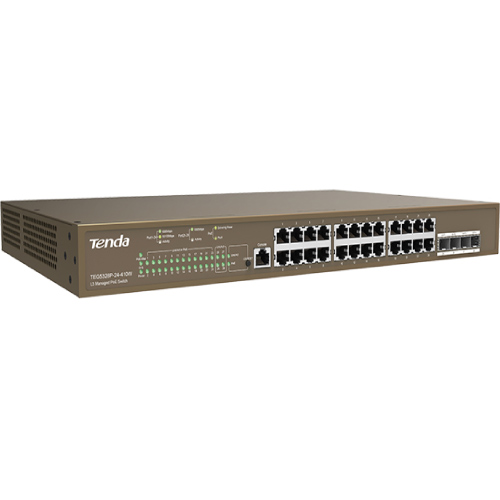

TEG5328P-24-410W   L3 Managed PoE Switch

Layer-3 Routing Engine,High-Efficiency Fast Forwarding
Supports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!

370W Smart PoE Power Supply, 2 Times Load Capacity
Using a new 410W built-in PoE power, the number of AF / AT full-supply loads is twice than the ordinary low-power PoE switches!At the same time, the built-in PSE chip with intelligent power management function can monitor the temperature of the chip and customize the PoE power supply based on the time period. The device will automatically turn on / off the PoE function during working hours and idle time to minimize energy consumption and extend the service life of the device.

Flexible QoS, Precise Traffic Control
The TEG5328P-24-410W supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth,in order to better meet the current transmission needs.

Supports Layer 2 And Layer 3 ACL,For More Secure Access
Support strict access control based on MAC address or IP address, which can filter the corresponding data packets to enhance user network security. It can be used for network deployment of enterprise medical and other units.

Multiple Attack Defenses.

Support IP / MAC / ARP filtering / DoS attack protection, enable attack protection according to networking requirements, bring multiple layers of protection to user network security, and ensure network stability and failure-free.

6kV Lightning Protection.


Hardware
Network standards
IEEE802.3  IEEE802.3u  IEEE802.3ab  IEEE802.3z  IEEE802.3x  IEEE802.3af/at IEEE802.1p IEEE802.1q IEEE802.1w  IEEE802.1d  IEEE802.1s

LED Indicator
1*Link/Act or PoE LED indicator
1*Link/1*Link/Act mode converting LED indicator
1*PoE mode converting LED indicator
1*PoE Max LED indicator
1*Power LED indicator
1*SYS LED indicator

Interfaces
24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console port

Transmission media
Recommended: CAT5/5e UTP or better

Fan quantity
2

Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode
Store-and-forward

Switch capacity
56Gbps

Packet forwarding rate
41.70Mpps

Buffer
12Mb

MAC address table
16K

Jombo frame
10K

PoE power supply management
Support

PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 370W

Input voltage
100-240V AC 50/60Hz

Power consumption
Full load: <432W
Empty load: <23W

Dimension
440.0mmx284.0mmx44.0mm

Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Energy Efficient
Support

Environment
Operating temperature: 0°C - 45°
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing

Certification
FCC-CE -RoHS

Software
L3 Features
Supports VLAN-based routing
Supports IPv4 static routing
Supports static ARP

PoE power supply management
Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)

Security features
ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authentication

VLAN
IEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid

DHCP Server
DHCP Relay
DHCP Snooping
Supports Option 82 policy configuration

Port aggregation
Static aggregation
LACP dynamic aggregation

Spanning tree
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics

Multicast
IGMP Snooping V1/V2/V3
Supports port fast leave

Port Mirroring
Supports N: 1 port mirroring

Quality of Service
SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping

ACL
Supports MAC ACL and IP ACL

Loading and upgrade
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export

Management and maintenance
Supports Telnet
Supports Telnet, Console
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert/Connection Detection
CPU Monitoring and memory monitoring
