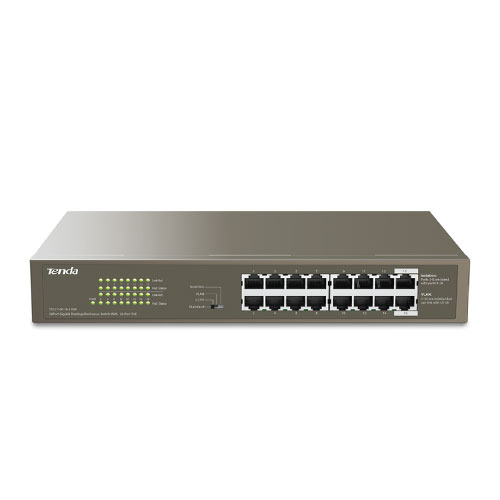

Tenda 16 Port Gb POE+ 135W 6kv

Tenda 16 Port Gb POE+ 135W 6kv

Item #
NS16JT01
Brand
TENDA
Model
TEG1116P-16-150W

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
5 to 7 Days
Add On Products
Product Description
Born For Surveillance
16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE

6KV Lightning Protection PoE Switch

is the only engineering switch In real projects,APs and cameras are often installed outdoors or at an elevated location, which increases the chance of lightning strikes on cameras and PoE-powered switches. The result is that individual devices are damaged when the outcome is light, and even the whole local area network is damaged.Tenda TEG11 series switches have professional lightning protection design - 6KV Lightning Protection for Ports and the power,and they have two levels of protection design respectively, which effectively suppress the lightning current from the network cable and power supply, equivalent to adding a security wall to the entire network monitoring system. The test standard is much higher than the national CCCrequest. In the thunderstorm, Tenda TEG11 series switches can also provide a stable and reliable service to the surveillance network and guarantee the normal transmission of the picture.

CCTV, Standard, VLAN and Isolation Operation Modes Offered
Standard: The switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

CCTV: The port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other.
VLAN: Ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively.

Isolation: Ports 1 to 8 and ports 9 to 16 belong to two different VLAN. This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
135W PoE power supply

simplified wiring
Ports 1-16 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 135W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.




Network standards
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at

LED Indicator
16*Link/Act per device
16*PoE per device
1*Power per device

Interfaces
16*10/100/1000 Base-T ports(Data/Power)

Transmission media
Recommended: CAT5/5e UTP or better

Fan quantity
N/A

Dimension
294.0mmx178.0mmx44.0mm

Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode
Store-and-forward

Switch capacity 32 Gbps

Packet forwarding rate
23.6Mpps

Buffer
2M

MAC address table
8K

PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 135W

Input voltage
100-240V AC 50/60Hz

Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support

Environment
Operating Temperature: 0°~45°
Storage Temperature: -40°~70°
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification
FCC- CE-  RoHS
