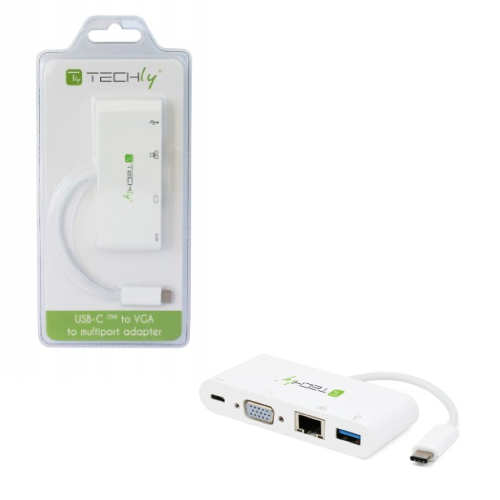

Techly USB-C to USB 3A W/VGA/RJ45/USB C
Techly USB-C to USB 3A W/VGA/RJ45/USB C
Item #
MFG Part No
1 Year
Retail Pack
If out of stock
While Supplies Last
Product Description

IADAP USB31-DOCK2 is a USB-C to USB 3.0 with Gigabit Ethernet, VGA and USB-C charging port hub.
The USB 3.0 port allows you to connect a USB device to a host computer or another hub, the USB-C female port can charge for the host computer, VGA port allows you to connect a VGA monitor so that you can watch videos or slideshows on a big screen and the host computer can easily connect to the network through the Gigabit Ethernet port. It can work on PC, Macbook Chromebook Pixel, and other USB-C supported devices.

Feature and specifications

• USB 3.1 Type-C adapter to USB3.0, with VGA, RJ45, Type-C connections
• Supports resolution up to 1920 x 1200 60Hz
• Input: USB-C Male x1
• Output: VGA Female x1
• Output: RJ45X1
• Vertical frequency 50/60Hz - Bandwidth up to 2.25Gbps/225MHz
• Color: white
• Support USB-C, VGA, USB3.0, Gigabit Ethernet port
• Support USB 3.0 super speed (5Gbps) transmission, downward compatible with USB2.0
• USB 3.0 port supports to charge and transmit data for the USB device simultaneously
• Support BC1.2, the power of USB-A port can be up to 7.5W (5V/1.5A)
•  Support VGA resolution up to 1920X1200@60Hz
• Support 10/100 /1000Mbps bandwidth
•  Support twisted pair crossover detection and auto-correction
• USB-C charging port supports to charge for Macbook or Google new Chromebook Pixel and other USB-C supported devices and supply power for the hub
•  Multiple USB-C interfaces support plug and play, hot swap
• Lenght: 95 mm
•  Width: 41 mm
•  Height: 17 mm
• Weight: 46.9 gr
• USB3.0 port: up to 7.5W (5V/1.5A)
• USB-C Female: up to 60W (20V/3A)
• Environmental characteristics
• Operating Temperature: 0°C to +45°C
• Operating Humidity: 10% to 85 % RH (no condensation)
• Storage Temperature: -10°C to +80°C Physical
• Storage Humidity: 5% to 90 % RH (no condensation)
Package Contents
• USB 3.1 Type-C adapter to USB3.0, with VGA, RJ45, Type-C connections
• User Manual
