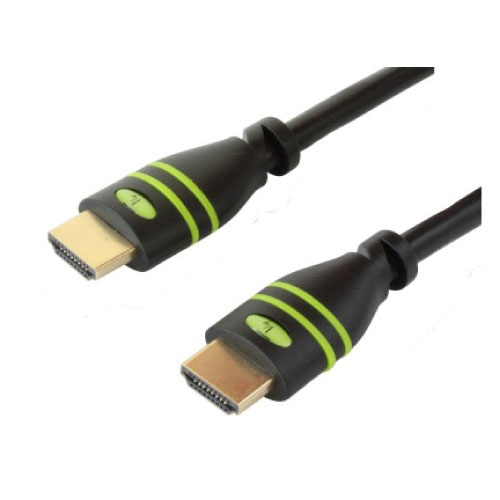

Techly HDMI HS W/E 4K 10ft M-M

Product Description

• Cable based on a new technology that provides the best data transmission between the HDMI source and HDMI display. The five twisted pairs offer better transmission of data between devices
• Triple shielded with resistant connectors for a better performance can optimize the signal with data integrity, even in installation environments subjected to the worst interference EMS
• Certificate ATC, this cable is fully meeting the requirements of world standard HDMI. All cable materials are 100% RoHS compliant and lead-free
• Connections to HDMI 19-pin male to HDMI 19-pin male
• High-speed, two-way communication up to 100 Mbps
• Supports HD resolutions beyond 1080p and Deep Color
• Compliant with HDMI High Speed
• Molded PVC
• HDMI Ethernet Channel: supports Internet via HDMI (HEC)
• Audio Return Channel: Allows an HDMI connected TV with a built-in tuner to send audio data "upstream" to a surround audio system, eliminating the need for a separate audio cable
• Supports 3D: defines protocols input / output for major 3D video formats, even for games and 3D home theater applications
• Supports 4K (2160p)


General information
• Bandwidth: 10.2 Gbps
• 340 MHz
• Supports HEC
• Length: 3 meters


Connectors
• 2 x HDMI 19-pin male
• Contacts gold-plated
• Molded PVC boot
• Shielded, braid and aluminum foil
• internal conductors AWG 30
• Cable diameter: 0.6 mm


Features
• Functionality HEC (HDMI Ethernet Channel)
• Support to the return channel for audio
• Supports resolutions up to 4096 x 2160 pixels at 24 fps and 30 Hz
• Functionality ACE (Automatic Content Enhancement)
• Supports Deep Color
• Supports xvYCC


Electrical Information
• Current rating: 0.5 A DC
• Supports voltage 300 V DC
• Insulation resistance: 50 MOhms
• Conductive resistance: 2 Ohms


Standards and Certifications
• UL 20276
• ISO 9002
• RU


Package Contents
• High Speed HDMI Cable with Ethernet Channel 3 m
