Techly 19" 12U W Mount Rack- Flatpacked

Techly 19" 12U W Mount Rack- Flatpacked

Item #
RCK1912RT
Brand
Techly
MFG Part No
I-CASE FP-2012BK
Model
I-CASE FP-2012BK

Color
Black
Warranty
1 Year
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description

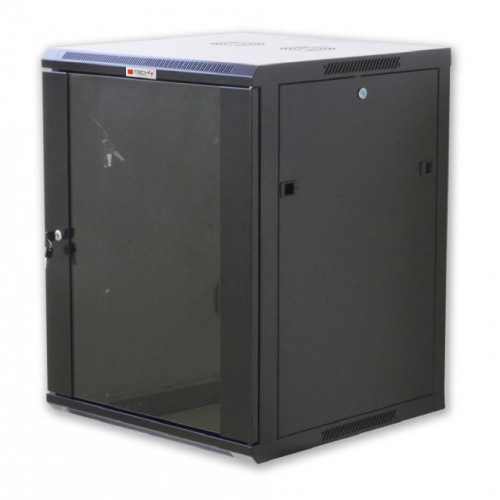

TECHLY 12U Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space such as wiring closets, POS stations and offices. Constructed with a sturdy wall mounting bracket and steel frame, it can accommodate up to 140 lbs. of equipment in 12U of rack space. Adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment.


Features a perforated lockable front door and side panels, assuring generous airflow to keep equipment operating safely. The side panels are removable for easy access to equipment, and the front door is reversible. The top and bottom panels of the enclosure include convenient cable routing ports. Ships flat packed and comes with a 1-year manufacturer’s product warranty.


Key Features

12U wall-mounted enclosure

Ideal for VoIP wiring closets and education venues that require security

Ventilated front door and side panels for increased airflow

Locking, reversible front door

Locking, removable side panels

Fully assembled for quick installation

Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Typical Applications


IT network environments with limited floor space, VoIP closets, and classrooms where equipment needs to be secure and out of the way of students.


PHYSICAL

• Built-in closet individual section 12 units supplied to assemble
• Solid welded cold-rolled steel
• Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
• Fixed-blind Rear Panel
• Side panels removable blind
• Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
• Preparation for the installation of two 120 mm fans on the roof
• Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 300 mm (11.81") with fully advanced posts, 210 mm fully backward uprights)
• Slots for air passage at the top and bottom of the front and side panels
• Static load: 60 kg
• Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
• Includes grounding kit
• RAL 9004 (black)
• Dimensions: 635x570x450 mm (HxWxD)
