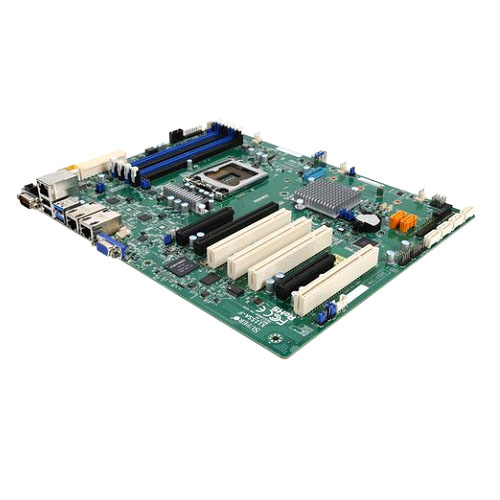

Supermicro LGA1151 V5-V6 Xeon ATX
Supermicro LGA1151 V5-V6 Xeon ATX
Item #
MBIX1151S
Brand
Supermicro
Model
MBD-X11SSA-F-O

Warranty
1 Year
Condition
Retail Box
If out of stock
3 to 5 Days


Product Description



SUPERMICRO LGA1151 SOCKET H4 XEON ATX


Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core?™ i3 series,
Intel® Celeron® and Intel® Pentium®
Intel® C236 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
4 5V PCI 32-bit slots
Dual GbE LAN with Intel® i210-AT
6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
I/O: 1 VGA, 2 COM, TPM header
2 SuperDOM with built-in power
5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2260, 2280, 22110
Key: M-Key
Double Height Connector
