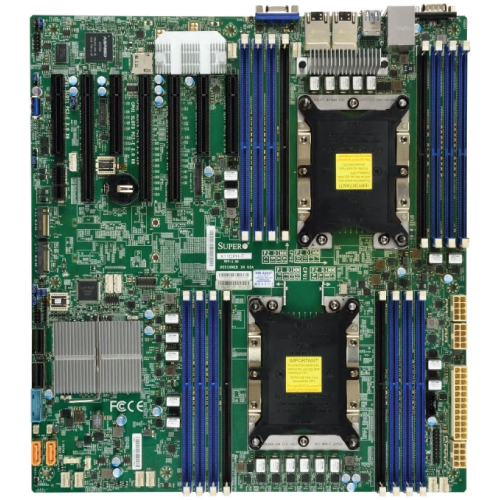

S.M Xeon  Dual 3647 Narrow Fan. 3YR
S.M Xeon Dual 3647 Narrow Fan. 3YR
Item #
MBIXS3647SMH
Brand
Supermicro
Model
MBD-X11DPH-i-0(3yr)

Warranty
3 Year
Condition
Retail Box
If out of stock
5 to 7 Days
Product Description


S.M XEON DUAL 3647 W/2XM.2 3YR


Marketing Information

Key Features
1.Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s, CPU1: SkylakeF CPU supported
2.Intel C621
3.Up to 1TB 3DS ECC RDIMM and DDR42666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
4.3 PCIE 3.0 x16,
4 PCIE 3.0 x8
M.2 Interface: PCIE 3.0 x4 and PCIE 3.0 x4
M.2 Form Factor: 22110
M.2 Key: MKey (RAID 0,1 support)
5.1 VGA port
6.Intel C621 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
7.Dual LAN with 1GbE with Marvell 88E1512

Detail Specifications

Form Factor
EATX

Processor/Cache
CPU:
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
CPU1: SkylakeF CPU supported

System Memory
Memory Capacity: Up to 1TB 3DS ECC RDIMM and DDR42666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type: 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes:
RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB
Memory Voltage: 1.2V
Error Detection:
Corrects singlebit errors
Detects doublebit errors (using ECC memory)

OnBoard Devices
Chipset: Intel C621
SATA: Intel C621 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI: ASPEED AST2500
Network Controllers: Dual LAN with 1GbE with Marvell 88E1512

Input / Output
SATA: 10 SATA3 (6Gbps) ports
LAN: 2 1GbE LAN ports
USB: 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)
Video Output: 1 VGA port
Serial Port / Header: 2 COM Ports (1 rear, 1 header)
TPM: 1 TPM Header
Expansion Slots
PCIE:
3 PCIE 3.0 x16,
4 PCIE 3.0 x8
M.2:
M.2 Interface: PCIE 3.0 x4 and PCIE 3.0 x4
Form Factor: MKey 22110 (RAID 0,1 support)

System BIOS
BIOS Type: AMI UEFI

Management
Software: Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog

PC Health Monitoring
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 6+1 Phaseswitching voltage regulator, 7fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
FAN: 7fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control
Temperature:
CPU thermal trip support
Monitoring for CPU and chassis environment
PECI
LED:
CPU / System Overheat LED
UID/Remote UID
Suspend static indicator LED
Other Features: ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID

Operating Environment
Operating Temperature Range: 10oC 35oC (50oF 95oF)
NonOperating Temperature Range: 40oC 70oC (40oF 158oF)
Operating Relative Humidity Range: 8% 90% (noncondensing)
NonOperating Relative Humidity Range: 5% 95% (noncondensing)

Item Dimension (L"xW"xH")
12 x 13 x 2

Weight
3 lbs

Warranty Information
3 Years

*** requires FNC3647S rectagular cpu heatsing with active cooling for 4u systems ****** Intel Xeon Scalable Processors.
