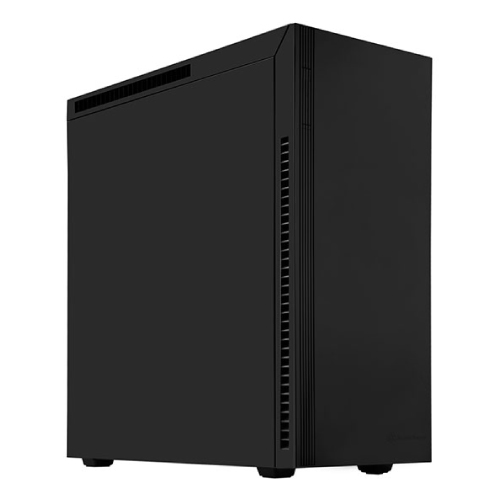

Silverstone Tek KL07B ATX TWR NO/PS

Item #

CS4S01

Brand

Silverstone

Model

KL07B

Warranty

1 Year

Add On Products

Asus 1700 H610M 2XDDR4 2PCIe HDMI MATX

MBIT6102

Asus 1700 H610M 2XDDR4 2PCIe HDMI MATX

MBIT610A

Product Description

Special wavy foam padded for noise absorption
Super clean internal look with PSU and drive bay cover
Includes front mounted USB 3.0 Type-C port
Smart backside cable routing design
Motherboard back plate opening for quick CPU cooler assembly
Includes two 140mm fans designed to generate positive pressure
Supports graphics cards up to 15.3" (388mm)


Model No.	SST-KL07B (black)

Material	Plastic front panel, steel body

Motherboard	ATX ( up to 12" x11") , Micro ATX

Drive bay	Internal 3.5" x 3 (compatible with 2.5") , 2.5" (7mm ~ 9.5mm) x 3

Cooling system	Front 3 x 120 / 140mm fan slot (2 x 140mm intake fan included) Rear 1 x 120 / 140mm fan slot (1 x 140mm exhaust fan included) Top 2 x 120 / 140mm fan slot

Radiator support	Front 120mm / 240mm / 280mm / 360mm x 1 Rear 120mm /140mm x 1 Top 120mm / 240mm x 1

Limitation of CPU cooler	163 ~ 172mm**

Expansion slot	7

Limitation of expansion card	Compatible up to 15.3" (388mm) in length, width restriction –6.5" (165mm)

Power supply	Optional PS2 (ATX)

Limitation of PSU	190mm

Front I/O port	USB 3.0 x 2, USB Type C (19pin)* x 1 Audio x 1 MIC x 1

Dimension	222mm (W) x 510mm (H) x 467mm (D), 52.8 Liters 8.74" (W) x 20.08" (H) x 18.39" (D), 52.8 Liters

Net weight	7.7kg

Extra	Support Kensington locks
