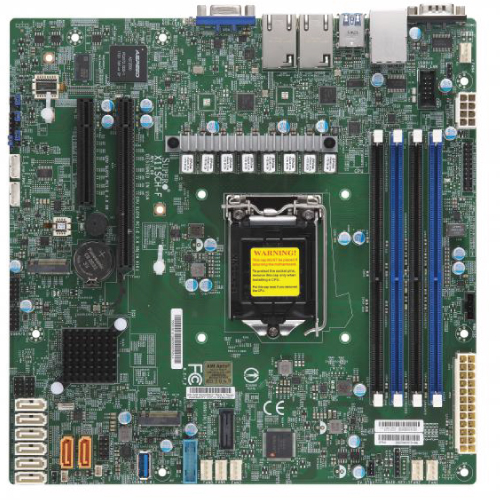

S M Xeon 1151 C246 M.2  MATX Dual Gb 8RS
S M Xeon 1151 C246 M.2 MATX Dual Gb 8RS
Item #
MBIXC246MSM
Brand
Supermicro
Model
MBD-X11SCH-F-O

Warranty
1 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description


S M XEON 1151 C246 M.2 MATX DUAL GB 8RS


Supermicro Motherboard MBD-X11SCH-F-O E-2100 LGA1151 C242 128GB DDR4 PCI Express Micro-ATX Retail
Key Features
1. 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® Processor E-2100 series., Single Socket LGA 1151 supported, CPU TDP support Up to 95W TDP
2. Intel® C246 chipset
3. Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
4. Expansion slots: 1 PCI-E 3.0 x8 (in x16) and 1 PCI-E 3.0 x8 slots
5. Dual GbE LAN ports via Intel® i210
6. 8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10
7. I/O: 1 VGA, 2 COM, TPM header
8. 2 SuperDOM with built-in power
9. 2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))
10. 2x M.2 NGFF connectors
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector


Physical Stats
Form Factor
Micro-ATX


Processor/Cache
CPU 8th Generation Intel CoreTMi3/Pentium/Celeron Processor, Intel Xeon Processor E-2100 series.
Single Socket LGA 1151 supported, CPU TDP support Up to 95W TDP Cores / Cache 6 cores, 12 threads


System Memory
Memory Capacity
Up to 128GB DDR4 ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM 72-bit DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
(Future support for 128GB via a BIOS update)


On-Board Devices
Chipset
Intel C246
SATA
Intel C246 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel Ethernet Controller I210
Graphics
Aspeed AST2500 BMC


Input / Output
USB
6x USB 2.0 ports (2 rear, 4 via headers) 2x USB 3.1 Gen2 ports (rear) 3x USB 3.1 Gen1 ports (1 Type-A, 2 via header)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header) TPM
1 TPM Header


Expansion Slots
PCI-E
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x8
M.2
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector


System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0


Management Software
Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery


PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
N/A
LED
CPU / System Overheat LED, UID/Remote UID Other Features
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL

Operating Environment
Operating Temperature Range
0oC to 50oC (32oF to 122oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
