The easiest way to optimize your games and keep your drivers up to date, the
GeForce Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you'll be able to update the driver directly, without leaving your desktop.

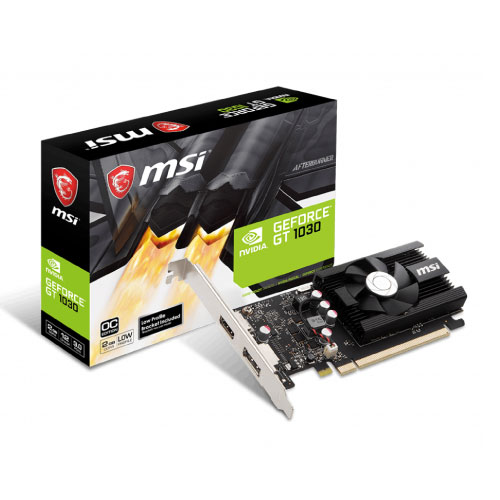

STEP UP TO BRILLIANT PC GRAPHICSAccelerate your entire PC experience with the fast, powerful NVIDIA®
GeForce® GT 1030 graphics card. Gaming. HD video and picture editing. The GT 1030's award-winning NVIDIA Pascal™ architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today’s most demanding PC applications.
Core/MemoryBoost Clock / Base Clock
1430 MHz / 1189 MHz
2GB DDR4 / 2100 MHz Memory
All Solid Capacitors10 years long lifetime under full load.
Lower temperature and higher efficiency.
Aluminum core for higher stability.
Low Profile DesignLow profile design saves more spaces.
User can build slim or smaller system easier.
Afterburner Overclocking Utility
Wireless control through Android/iOS devices.
Predator: In-game video recording.
Kombustor: built-in DirectX12 benchmark.
GeForce ExperienceEnsures the best gaming experience by automatically updating users’ game-ready drivers.
Allows users to optimize the game settings to their PC with a single click.
|
MODEL NAME
|
GeForce® GT 1030 2GD4 LP OC
|
|
GRAPHICS PROCESSING UNIT
|
NVIDIA® GeForce® GT 1030
|
|
INTERFACE
|
PCI Express 3.0 x16 (uses x4)
|
|
CORES
|
384 Units
|
|
CORE CLOCKS
|
1189 MHz / 1430 MHz
|
|
MEMORY SPEED
|
2100 MHz
|
|
MEMORY
|
2GB DDR4
|
|
MEMORY BUS
|
64-bit
|
|
OUTPUT
|
DisplayPort (v1.4a) HDMI (Supports 4K@60Hz as specified in HDMI 2.0b)
|
|
HDCP SUPPORT
|
2.2
|
|
POWER CONSUMPTION
|
20 W
|
|
RECOMMENDED PSU
|
300 W
|
|
CARD DIMENSION (MM)
|
150 x 69 x 19 mm
|
|
WEIGHT (CARD / PACKAGE)
|
131 g / 371 g
|
|
DIRECTX VERSION SUPPORT
|
12
|
|
OPENGL VERSION SUPPORT
|
4.5
|
|
AFTERBURNER OC
|
Y
|
|
MAXIMUM DISPLAYS
|
2
|
|
ACCESSORIES
|
Low Profile Bracket x 1
|
|
Important
|
‘Boost Clock Frequency’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. ‘Game Frequency’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
|
