MSI-1200-H510I-2XDDR4-1PCIE-HDMI-M-ITX

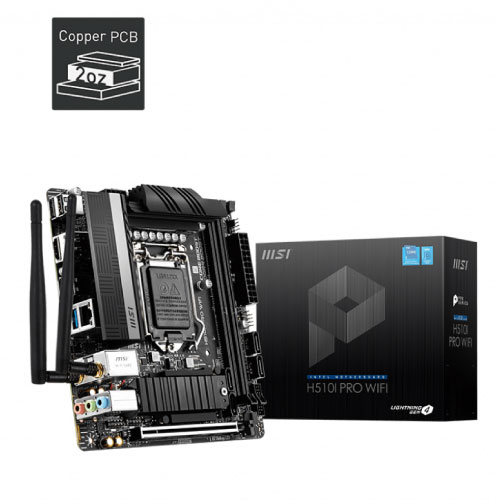

MSI 1200 H510I 2XDDR4 1PCIe HDMI M-ITX
Item #
MBIT510PI
Brand
MSI
Model
H510I PRO WIFI
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
EACH
Product Description
MSI 1200 H510I 2XDDR4 1PCIe HDMI M-ITX
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
PROCESSOR
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1200
Please go to intel.com for compatibility information.
See supported processors
CHIPSET
Intel® H510 Chipset
MEMORY
2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) 1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) 1
Max frequency:
1DPC 1R Max speed up to 3200+ MHz
1DPC 2R Max speed up to 3200+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.
See supported memory
EXPANSION SLOT
1x PCIe x16 slot
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
ONBOARD GRAPHICS
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 2
1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz 1 2
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
STORAGE
Intel® H510 Chipset
4x SATA 6Gb/s ports (from H510 chipset)
1x M.2 slot (from H510 chipset)
Support up to PCIe 3.0
Supports SATA 6Gb/s
Supports 2280 storage devices
USB
Intel® H510 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
4x USB 2.0 Type-A ports on the back panel
GL850G Hub
2x USB 2.0 ports available through the internal USB connector
AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® 8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH®
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
WiFi 6 pre certified
Supports Bluetooth® 5.1, FIPS, FISMA
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
BACK PANEL PORTS
USB 2.0
DisplayPort
USB 2.0
LAN port
WIFI / Bluetooth
Audio connector
HDMI
USB 3.2 Gen 1 5Gbps Type-A
MSI H510I PRO WIFI back panel ports
DIMENSIONS
Mini-ITX Form Factor
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
MOUNTING
4 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
