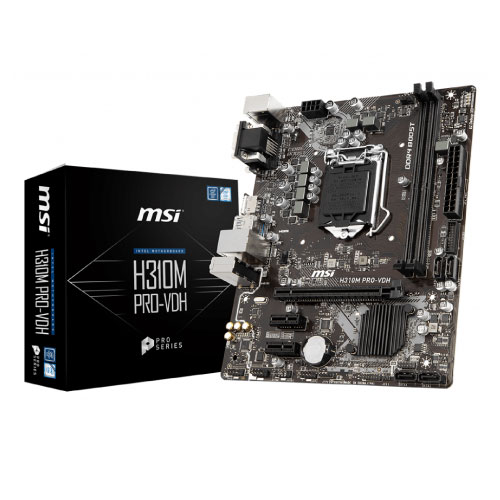

MSI 1151 H310 2XDDR4 3PCIE VGA/HDMI MATX

Item #
MBI8H31M
Brand
MSI
Model
H310MPROVDHP

Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description
MSI 1151 H310 2XDDR4 3PCIE VGA/HDMI MATX

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

Supports DDR4 Memory, up to 2666MHz
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

PROCESSOR
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

CHIPSET
Intel® H310 Chipset

MEMORY
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1
Supports DDR4 2666/ 2400/ 2133 (by XMP OC)1
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
2666 MHz for I7 and I5 processors only.

ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H
*No Display support when using the Processor model with suffix “F”

Supports up to 2 displays simultaneously.


STORAGE
Intel® H310 Chipset
4 x SATA 6Gb/s ports
Supports Intel® Rapid Storage Technology

USB
Intel® H310 Chipset
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO
Realtek® ALC 887/897 Codec
7.1-Channel High Definition Audio

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x Clear CMOS jumper
2 x Front panel connectors
1 x Serial port connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Front panel audio connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector


BACK PANEL PORTS
PS/2 Combo Port
VGA Port
HDMI Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
USB 2.0 Port

DIMENSIONS
6 mounting holes

OPERATING SYSTEM Support for Windows® 10 64-bit
