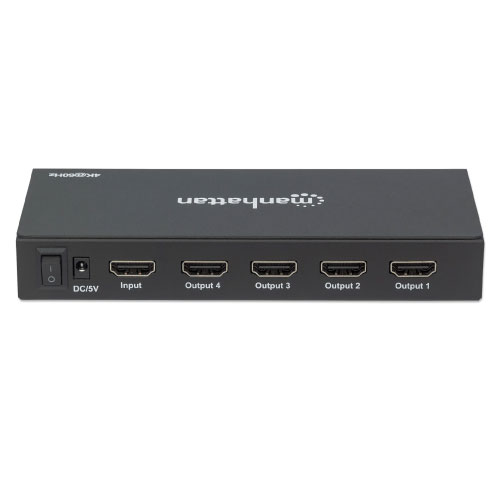

Manhattan HDMI 4 Port Splitter 4k/1080p

Item #
CABVIDHD4M
Brand
Manhattan
Model
207515

Color
Black
Warranty
3 Year
Condition
Retail Pack
If out of stock
3 to 5 Days
Add On Products
Product Description

Easily distribute a single Ultra High Definition (UHD) signal to multiple displays.
The Manhattan 4K 4 Port HDMI Splitter with built-in booster streams a 4K HDMI signal from a single UHD source to up to four UHD displays.
Best Possible Image Quality and Easy Installation
Full compliance with HDMI and HDCP 1.3 ensures the Manhattan 4K 4-Port HDMI Splitter provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep Color, as well as LPCM, DTS and Dolby TrueHD audio. Quickly connect HDMI cables (not included) and the power supply to complete this cost-effective 4K solution no software or hardware configuration or complicated settings required.


Features and Specifications

• Replicates an Ultra-High-Definition (UHD) digital audio/video signal for up to four UHD HDMI displays
• Supports video amplifier bandwidth up to 340 MHz, 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
• Supports 48-bit Deep Color (12-bits per channel) and xvYCC (x.vColor)
• Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
• HDCP compliant
• Multiple splitters (five total) may be cascaded up to support 16 4K displays
• Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
• Plug and play
• Gold-plated contacts for corrosion-free connections
• One HDMI female (input)
• Four HDMI female (output)
• One 5 VAC power female (input) Signal Input/Output(input)
• Input video signal: 0.5 – 1.0 V p-p
• Input DDC signal: 5 V p-p (TTL)
• Maximum single-link range: 10.2 Gbps and 4096x2160 at 24 Hz resolution
• Output video: HDMI 1.4, HDCP 1.3
• Frequency: 2.97 Gbps
Supported Video Resolutions
• Maximum single-link range: 18 Gbps and 4096x2160 at 60 Hz resolution
• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz Physical
• Supports DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz Physical
• LED indicators: power and port connection
• Dimensions: 54 x 142 x 21 mm (2.1 x 5.6 x 0.8 in.)
• Weight: 0.3 kg (10.6 oz.)
