Manhattan 4 Port KVM USB W-Aud & Cables

Item #

KVMICM0476

Brand

Manhattan

Model

151269

Color

Black

Warranty

3 Year

Condition

Retail Box

If out of stock

3 to 5 Days

Product Description

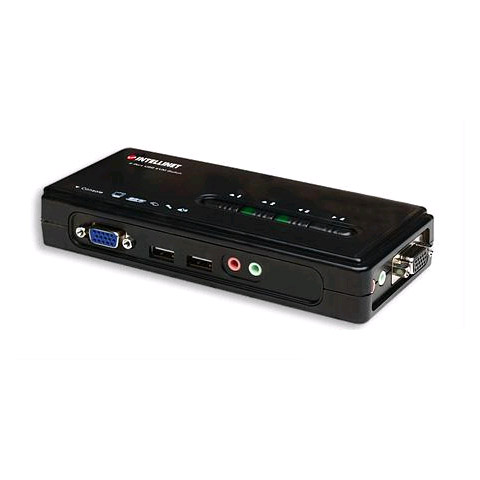

4-Port KVM Switch: USB, Compact, with Cables and Audio Support

Manage/control 4 USB computers from one keyboard, monitor and mouse
Audio and Microphone switching for uninterrupted multimedia experience across multi-platforms
Multi-platform support for PCs and MAC systems (Switching software client only available for Windows)
Hot-plugging PCs for maintenance without powering down the KVM Switch or PCs
Channel selection via push buttons, user definable keyboard hotkeys (Windows only) and Windows based switching software client
LED indicators for easy status monitoring
Supports resolutions up to 2048 x 1536 pixels
USB bus powered - no external power adapter required
Includes four connection cables for computer connection
Includes four connection cables for speaker and microphone
3 Year Warranty
Color: Black

Specifications

Standards
USB 1.1
General
PC Connections: 4
Console Connections: 1
PC Port Connectors:
- 4 x USB Type A (Keyboard, Mouse) and 4 x HD15 Male (Video) through four 6 ft. (1.8 m) 2-in-1 connection cables
- 4 x 3.5 mm Audio jacks (for microphone and speaker soundcard connection) through 4 6 ft. (1.8 m) dual jack audio cables.
Console Port Connectors:
- 2 x USB Type A (Keyboard, Mouse)
- 1 x HD15 Female (Video)
Audio Connectors:
- 1 x 3.5 mm jack (Console Microphone Input)
- 1 x 3.5 mm jack (Console Speaker Output)
- 4 x 3.5 mm jack (Microphone for PC ports)
- 4 x 3.5 mm jack (Speaker for PC ports)
Computer Selection:
- Via buttons
- Via hotkeys
- Via Windows switching software client
Video resolution: max. 2048 x 1536
Video bandwidth: max. 350 MHz
FCC Class B, CE, RoHS

LEDs
One LED per channel

Power
USB Bus powered
5 V
Power consumption: max. 500 mA

Package contents
KVM Switch
Quick installation guide
Software and documentation CD-ROM
PC and audio connection cables (6 ft./1.8 m)
