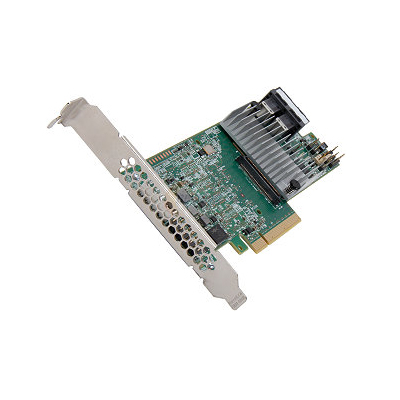

LSI 8 Port PCIe 3.0 SATA/SAS 12Gb RAID
If out of stock
5 to 7 Days
Product Description
Email, file, SharePoint, and similar critical apps must scale easily over time while remaining both highly protected and easily manageable. That’s where the MegaRAID SAS 9341-8i 12Gb/s SAS and SATA RAID controller card can add real value. Designed for small and medium businesses (SMBs) with tower and rack-mounted servers, it provides the headroom required for future growth at an affordable price point.
• Connect up to 64 SATA or SAS drives in non-RAID (JBOD) mode or 32 drives in RAID mode with eight internal 12Gb/s SATA and SAS ports
• Support high-bandwidth applications with PCIe 3.0 connectivity
• Fit into 1U/2U rack-mounted servers and compact servers with low-profile form factor
• Balance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50
Detail Specifications
RAID-on-Chip Controller
LSISAS3008 PowerPC 476 controller at 1.2 GHz
RAID Management Software
MegaRAID Storage Manager
StorCLI (command-line interface)
CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure)
Host Bus Type
x8 lane PCI Express 3.0
Internal Ports
8
Data Transfer Rates
Up to 12Gb/s per port
Devices Supported
Non-RAID (JBOD Mode): 64
RAID 0: 32 per volume
RAID 1: 2 per volume plus hot spare
RAID 5: 32 per volume
RAID 10: 32 per volume
RAID 50: 32 per volume
Operating Temperature
0 C to 70 C
Operating System
Extensive support includes Microsoft Windows Server 2012/Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more.
Internal Connectors
One, x4, SFF-8643 mini-SAS HD horizontal connector placement
MTBF
>2,800,000 hours
Operating Voltage
+12V
Regulatory Certifications
EMC: Class B-US (CFR 47, P15B) Canada (ICES-003) Japan (V-3/02.04) Europe (EN55022/EN55024) Australia/New Zealand (AS/NZS 3548) Safety: EN60950
Item Dimension (L"xW"xH")
6 x 10.5 x 1.75
Weight
1.00 lb
Warranty Information
3 Years
