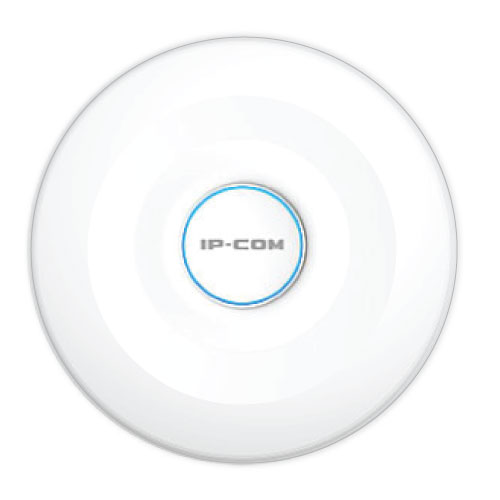

IP-Com AX DB AP w/Cloud

IP-Com AX DB AP w/Cloud

Item #
NWAAXT05
Brand
IP-Com
Model
PRO-6-LR

Color
White
Warranty
3 Year
Condition
Retail Box
If out of stock
5 to 7 Days
Add On Products
Product Description
Pro-6-LR
802.11AX Dual-Band Long Range Access Point
Up to 3000 Mbps dual-band data rate
The new WPA3 encryption mode safeguards your network security
2.4 GHz band 2x2 MIMO with a radio rate of 574 Mbps
5 GHz band 2x2 MIMO with a radio rate of 2402 Mbps
Power input with 802.3at PoE

Pro-6-LR is designed based on the new Wi-Fi 6 technology. It realizes a bandwidth of 160 MHz and a 5 GHz rate as high as 2.4 Gbps, a rate three times higher than that of ordinary Wi-Fi 5 APs and two times that of ordinary Wi-Fi 6 APs. The application of such new technologies as OFDMA, spatial multiplexing, and MU-MIMO drives the network capacity of a single Pro-6-LR to 4 times higher. The high-power RF design helps maintain the quality of Wi-Fi signal even over a long distance, so that wireless clients and AP can work under the high-performance Wi-Fi 6 mode. Pro-6-LR is a perfect choice for such locations as businesses and hotels to deploy high-performance Wi-Fi networks. ProFi Controller makes it easy to manage and monitor the whole ProFi series in a real-time manner and cloud services enable a remote and secure access free from the restrictions of device location.

3 Gbps Wi-Fi, 2.5 times higher rate
Both the 2.4 GHz and the 5 GHz radio bands support the new Wi-Fi 6 standard and the concurrent Wi-Fi rate is as high as 3 Gbps, 2.5 times that of the last-generation of AP (AC1200).

Higher capacity
Supporting OFDMA, SR, and MU-MIMO, 802.11ax greatly improves the system capacity compared with the last generation 802.11ac. With the TWT technology, AP can uniformly schedule the wakening and sleep of clients, significantly reducing client conflicts and unnecessary wakeups, and therefore is suitable for high-density crowd scenarios where large numbers of clients are deployed.

More than 20% wider Wi-Fi coverage
With the long OFDM symbol transmission mechanism and 2 MHz narrowband transmission, the 802.11ax protocol significantly reduces packet loss rate and noise interference, and improves the receiving sensitivity of clients. In addition, Pro-6-LR adopts a high-specification RF amplifying circuit, greatly widening the Wi-Fi coverage.

Strong anti-interference capability
Supporting BSS coloring, dynamic CCA threshold and power control, the 802.11ax protocol significantly reduces the channel interference in high-density scenarios and improves the utilization rate of spectrum resources, improving the anti-interference capability compared with 802.11ac.

Higher security
The Wi-Fi 6 AP supports the new-generation WPA3 Wi-Fi encryption protocol. Under the WPA3 encryption protocol, even the simple password cannot be cracked, greatly enhancing the security of Wi-Fi networks.

Intelligent roaming protocol
Supporting the intelligent roaming technology based on the 802.11kv protocol, Pro-6-LR enables wireless clients to automatically connect to AP with a better signal, effectively enhancing the user experience.

Standard PoE supported, easy installation and deployment
The efficient components and excellent hardware design guarantee the standard 802.3at power supply to 802.11ax dual-band gigabit AP, making installation and deployment simpler.

Centralized management
The ProFi Controller makes it easy to manage and monitor the whole ProFi series in a real-time manner and cloud services enable a remote and secure access free from the restrictions of device location.


Product Information
Model
Pro 6 LR

Category
Ceiling

Dimensions
F250.6*55 mm

Hardware Specifications
Frequency band
2.4 GHz, 5 GHz

Wireless standards
IEEE 802.11a/b/g/n/ac/ax

2.4 GHz data rate
1-574 Mbps

5 GHz data rate
6-2402 Mbps

Channel width
20 MHz/40 MHz/80 MHz/160 MHz

MU-MIMO
2X2 MU-MIMO

Ethernet port
One 10/100/1000 Mbps Ethernet Port
One 10/100/1000 Mbps Ethernet Port (PoE)

Button
1*Reset

LED indicator
RGB

Max. power consumption
15.74 W

Power supply standard
IEEE 802.3at PoE

Concurrent clients
254

Antenna gain
4*4 dBi

2.4 GHz Max. output power
29+/-1.5 dBm

5 GHz Max. output power
29+/-1.5 dBm

802.11b RX sensitivity
-97 dBm

2.4 GHz 802.11n (MCS7) RX sensitivity
-75 dBm

5 GHz 802.11a RX sensitivity
-95 dBm

5 GHz 802.11n (MCS7) RX sensitivity
-75 dBm

Software Specifications
Operating mode
AP

Hide SSID
Supported

Max. No. of SSID
2.4 GHz: 7 5 GHz: 4

OFDMA
Supported

Beamforming
Supported


Supported

802.11 k/v
Supported

WEP, WPA, WPA2 Supported

WPA-PSK
AES/TKIP

WPA2-PSK
AES/TKIP

WPA3-ASE
AES

VLAN tagging for SSID
Supported

Diagnostics tool
Ping, Traceroute

Reboot at specified interval- Scheduled reboot
Supported

If you can't find what you're looking for here, please contact your sales representative.
